MOBILE TROMMELS AND SCREENS
The first model in our range of MDS mobile trommels is designed for wheel loaders with buckets up to 1900 mm wide. It features a screening drum with a 1200 mm diameter, a 1970 mm working length, and a 3.1 kW motor, delivering efficient and reliable material screening.
CZCREEN Mobile Screens feature a simple and robust design that delivers exceptionally high performance, easy operation, and minimal, low-cost maintenance. Their interchangeable screening meshes allow the machine to be quickly adapted to different applications with minimal downtime.
MOBILE TROMMEL
| SPECIFICATIONS | MDS MINI | MDS MIDI | MDS BIG |
|---|---|---|---|
| Trommel Diameter (mm) | 850 | 1200 | 1200 |
| Width (mm) | 1336-1807 | 2080 | 1600 |
| Length (mm) | 2700-2986 | 3030 | 4430 |
| Height (mm) | 2150-2320 | 2920 | 2700 |
| Weight (kg) | 850 | 1200 | 2000 |
| Voltage (v) | 230 | 400 | 400 |
| Power (kW) | 2,2 | 3,1 | 4 |
| Screening Area (m2) | 5,8 | 6,5 | 6,5 |
| Production Capacity (tn/hora) | 15-30 | 25-50 | 30-60 |
| Bucket Width (mm) | 1600 | 1900 | 2000 |
| Bucket Capacity (m3) | 0,5 | 0,9 | 1,5 |
| Screen Mesh Size (mm) | 5-80 | 5-80 | 5-8 |
MOBILE SINGLE-DECK SCREENS
| Características | MS ATTO | MS PIKO | MS NANO | MS NANO+ | MS MICRO | MS CENTO |
|---|---|---|---|---|---|---|
| Ancho (mm) | 1089 | 1350 | 1650 | 1880 | 2100 | 2420 |
| Largo (mm) | 1203 | 1250 | 1200 | 1257 | 1300 | 1470 |
| Alto (mm) | 1454 | 1705 | 1905 | 1952 | 1970 | 2300 |
| Peso (kg) | 140 | 250 | 350 | 350 | 520 | 900 |
| Voltaje (v) | 230 | 230 | 230 | 230 | 400 | 400 |
| Potencia (kW) | 0,5 | 0,3 | 0,3 | 0,4 | 0,6 | 0-75 |
| Pisos Cribado | 1 | 1 | 1 | 1 | 1 | 1 |
| Superficie Cribado (m2) | 0,72 | 1,1 | 1,5 | 1,5 | 2 | 2,7 |
| Producción (tn/hora) | 2-5 | 5-10 | 5-15 | 10-20 | 10-20 | 20-50 |
| Ancho Cuchara (mm) | 900 | 1200 | 1500 | 1700 | 1900 | 2200 |
| Malla Cribadora (mm) | 5-80 | 5-80 | 5-80 | 5-80 | 5-80 | 5-80 |

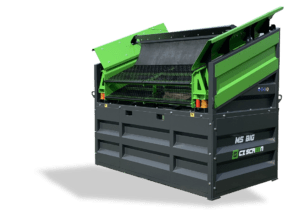

MOBILE FOUBLR-DECK SCREENS
| SPECIFICATIONS | MS MINI | MS MIDI | MS BIG | MS GIANT | MS OMEGA |
|---|---|---|---|---|---|
| Width (mm) | 2150 | 2550 | 2850 | 3090 | 2040 |
| Length (mm) | 1300 | 1470 | 1620 | 1650 | 2160 |
| Height (mm) | 2115 | 2340 | 2520 | 2520 | 2500 |
| Weight (kg) | 700 | 1400 | 1800 | 2000 | 1800 |
| Voltage (v) | 400 | 400 | 400 | 400 | 400 |
| Power (kW) | 0,4 | 1,5 | 1,8 | 1,8 | 1,8 |
| Screen Decks | 2 | 2 | 2 | 2 | 2 |
| Screening Area (m2) | 2 x 2 | 2 x 2,7 | 2 x 3,3 | 2 x 3,6 | 2 x 2 |
| Production Capacity (tn/hora) | 15-30 | 30-60 | 50-100 | 50-100 | 30-70 |
| Bucket Width (mm) | 1900 | 2300 | 2500 | 2700 | 1800 |
| Screen Mesh Size (mm) | 5-80 | 5-80 | 5-80 | 5-80 | 5-80 |
The main advantages of these Quick Couplers are:
Images of Mobile Trommels and Screens
