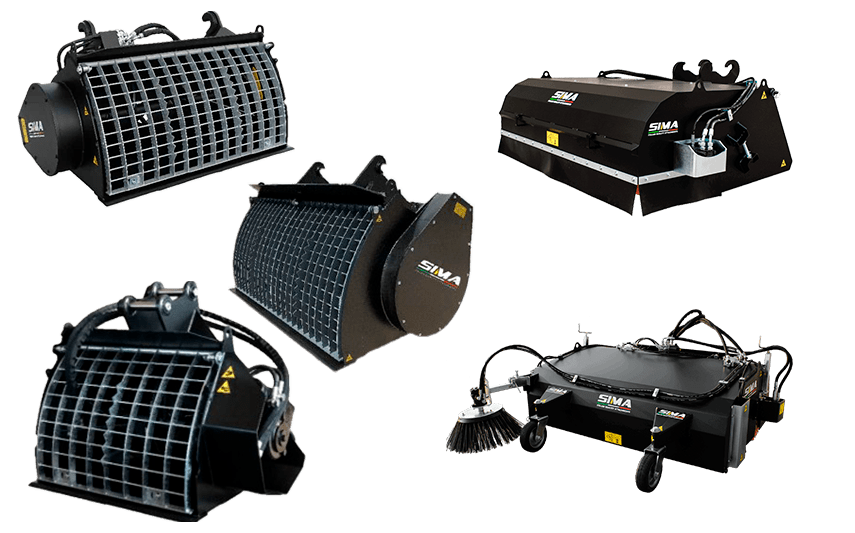

MIXING BUCKETS AND SWEEPER BUCKETS

The range of SIMA attachments is designed for industrial cleaning, construction, recycling, and concrete production applications. Thanks to their robust design and Italian manufacturing quality, they deliver high performance, durability, and reliability even under intensive working conditions.

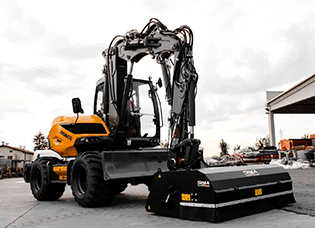

The SPZ Sweeper Buckets are designed for collecting milled asphalt, gravel, and other construction aggregates. They can be mounted on skid steer loaders, backhoe loaders, wheel loaders, and telehandlers, offering high loading capacity and easy maintenance.

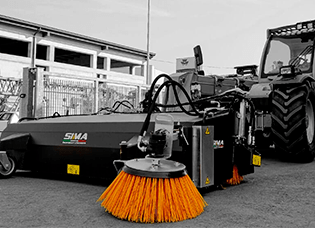

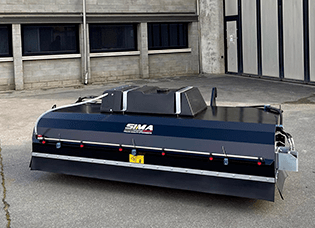

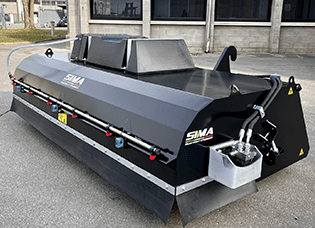

The SPZ-i Industrial Sweeper Buckets are designed for cleaning squares, sidewalks, cycle paths, and surfaces where even the finest materials must be collected. Their robust structure ensures efficient operation in public works, recycling, agriculture, and green area maintenance.

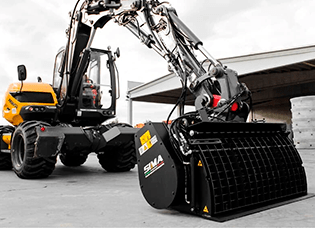

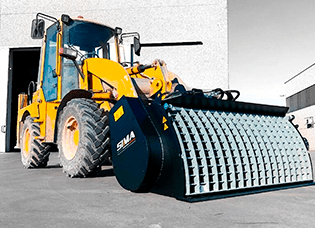

SIMA Concrete Mixing Buckets are designed to produce and transport concrete quickly and efficiently. Available in capacities ranging from 100 to 2,000 litres, they allow materials to be mixed within minutes and can be adapted to different types of earthmoving machinery.

YOUTUBE

CONTACT

CATALOGUE

SPZ MODEL

CHARACTERISTICS	SPZ12	SPZ15	SPZ18	SPZ21	SPZ24	SPZ26
Capacity (L)	340	430	500	600	680	740
Oberall Width (mm) – C	1450	1750	2100	2400	2700	2900
Working Widht (mm) – A	1200	1500	1800	2100	2400	2600
Depth (mm) – B	1500	1500	1500	1500	1500	1500
Height (mm) – D	750	750	750	750	750	750
Weight (kg)	310	350	450	520	640	720
Brush Diameter (mm)	600	600	600	600	600	600
Number of Brushes	30	34	40	46	54	59
Recommended / Max. Oil Flow (l/min)	40/75	40/74	50/90	50/90	50/90	50/90
Continuous / Max. Pressure (bar)	140/180	140/180	180/210	180/210	180/210	180/210

SPZi MODEL (Industrial)

CHARACTERISTICS	SPZ12i	SPZ15i	SPZ18i	SPZ21i	SPZ24i	SPZ26i
Capacity (L)	250	320	370	430	500	540
Oberall Width (mm) – C	1460	1760	2110	2410	2710	2910
Working Widht (mm) – A	1200	1500	1800	2100	2400	2600
Depth (mm) – B	1750	1750	1750	1750	1750	1750
Height (mm) – D	950	950	950	950	950	950
Weight (kg)	400	460	530	590	650	710
Brush Diameter (mm)	600	600	600	600	600	600
Number of Brushes	30	34	40	46	54	59
Recommended / Max. Oil Flow (l/min)	40/75	40/74	50/90	50/90	50/90	50/90
Continuous / Max. Pressure (bar)	140/180	140/180	180/210	180/210	180/210	180/210

S MODEL

CHARACTERISTICS	S10	S15	S20	S25	S30	S35	S40
Capacity (L)	100	150	200	250	300	350	400
Height (mm) – A	650	700	700	750	750	750	1000
Depth (mm) – B	700	850	850	900	900	1000	1050
Working Width (mm) – C	800	800	1000	1350	1400	1500	1400
Overall Width (mm) – D	1000	1000	1250	1550	1650	1700	1650
Empaty / Full Load Weight (kg)	220/180	240/600	280/760	365/965	385/1105	425/1265	560/1520
Recommended / Max. Oil Flow (l/min)	40/75	40/75	40/75	40/75	40/75	50/90	65/90
Continuous / Max. Pressure (bar)	130/180	130/180	130/180	140/180	140/180	180/210	65/190
Drive System	Gearbox	Gearbox	Gearbox	Chain	Chain	Chain	Chain

S MODEL

CHARACTERISTICS	S45	S50	S75	S100	S150	S180	S200
Capacity (L)	450	500	750	1000	1500	1800	200
Height (mm) – A	1050	1050	1250	1300	1600	1600	1600
Depth (mm) – B	1050	1050	1250	1300	1500	1500	1500
Working Width (mm) – C	1560	1760	1800	2000	1800	2000	2200
Overall Width (mm) – D	1750	1950	1950	2100	2150	2350	2500
Empaty / Full Load Weight (kg)	630/1710	77/1970	920/2720	1000/3400	2200/5800	2400/600	2800/7600
Recommended / Max. Oil Flow (l/min)	70/150	70/150	125/240	125/240	40/75	40/75	40/75
Continuous / Max. Pressure (bar)	160/190	160/190	180/200	180/200	130/180	130/180	130/180
Drive System	Chain	Chain	Chain	Chain	Gearbox	Gearbox	Gearbox

The main advantges of these hydraulic magnets are:

Italian manufacturing with high-quality materals.
Robust design for intensive applications and continuous operation.
Easy installation and maintenance.
High working capacity for cleaning and material handling applications.
Compatible with skid steer loaders, backhoe loaders, wheel loaders, and telehandlers.
Brushes and components designed for high performance and long-lasting durability.
Concrete mixing buckets designed for rapid mixing and efficient concrete transportation.
Versatilw equipment for public works, recycling, agriculture, and construction applications.
