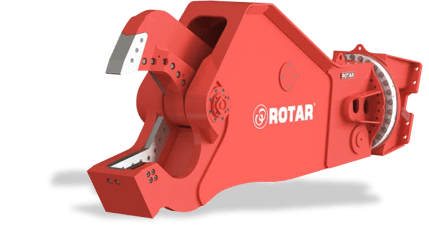

SCRAP SHEARS

ROTAR company, located in the Netherlands, is a company specialized in the construction of equipment for demolition and recycling, so popular for the manufacture of screening buckets, handling grabs, shears, and pulverizers. Manufacturing Rotar scrap shears since 2002 (under license). Rotate designed its own shears since 2009.

A ROTAR scrap shear is designed to cut various construction steels: beams, plates, tubes, rods, profiles and solid. In different applications: demolition, ships, foundries, road and rail equipment.

ROTAR shears have enormous cutting power and fast cycle times guarantee incredible productivity. The RSS series will cut tons of steel in the blink of an eye!

YOUTUBE
CONTACT US
CATALOGUE
FEATURES RSS10 RSS20x RSS30 RSS40 RSS50 RSS100 RSS100x RSS150
 Excav. Boom (tn) 9-13 13-23 20-27 25-32 30-45 45-68 50-68 60-68
 Excav. Dipper (tn) 12-19 20-32 32-40 38-60 50-72 65-90 75-90 90-110
 Weight (kg) 1260 2540 3590 4440 6180 8250 9750 15500
 Tip Force (tn) 65 141 156 168 201 242 300 425
 Apex Force (tn) 130 261 296 319 390 467 575 825
 Throat Force (tn) 270 578 664 813 955 1338 1570 2128
 Dimension A (mm) 2245 2585 3275 3635 3980 4835 4500 5300
 Dimension B (mm) 385 450 607 750 782 947 954 1095
 Dimension C (mm) 380 420 544 625 701 903 917 997
 Max. Pres. Cylinder (bar) 350 380 350 350 350 350 380 380
 Cylinder Flow (l/min) 200 150-240 300-450 300-450 300-450 500-750 500-750 500-960
 Max. Pres. Motor (bar) 170 170 170 170 170 170 170 170
 Motor Flow (l/min) 50 50 50 50 50 50 50 50

  *Figures given for cycle times and cutting forces are indications only. External factors such as excavator setting, hydraulic infrastructure, quickcouplers and fittings may influence performance.

*Measures RSS Series

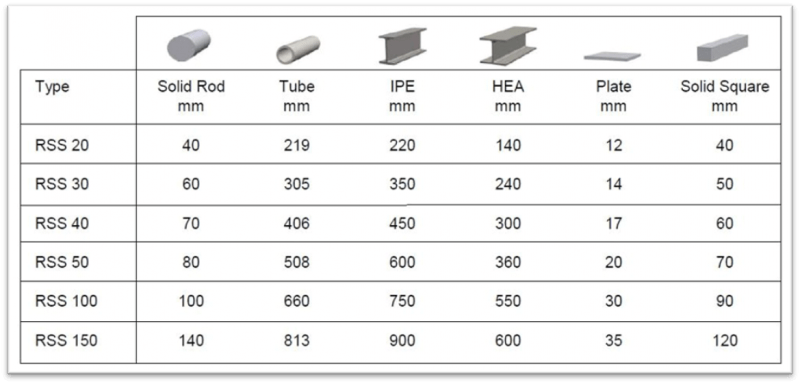

*CUT DIMENSIONS

RELIABILITY & ROBUSTNESS

The design and robustness of the equipment mean that their maintenance is minimal.

PROFITABLE & ECONOMIC

High quality equipment at a very affordable price.

REPLACEABLE BLADES

The RSS series is equipped with replaceable cutting blades.

*MAIN ADVANTAGES

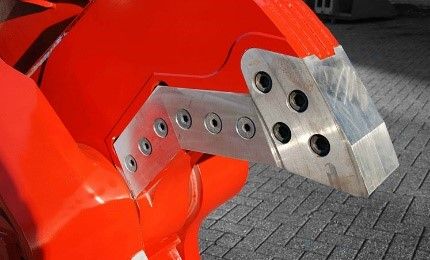

REPLACEABLE CUTTING KNIVES

The RSS Series is fitted with replaceable cutting knives and completely encased nose knives. The jaw design ensures that the materials are forced deep into the jaws, where the highest cutting power is available. The RSS Series body is assembled from high-grade performance steel and wear-resistant materials, making it extremely strong.

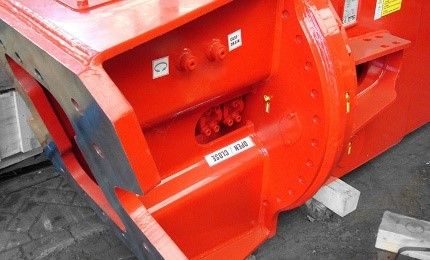

UPPER HEAD & SLEWING RING

The RSS series has a strong rotating upper head and a heavy-duty, double-rowed slewing ring. The hydraulic motor and the gearbox in the upper head generate a high torque, allowing the RSS Series to be moved in every possible position.

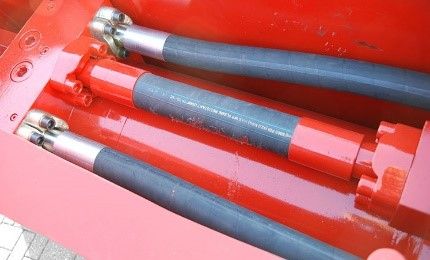

SPECIALLY HYDR. CYLINDER

The hydraulic cylinder with integrated speed valve, developed by Rotar, allows the jaws to close quickly and the RSS will effortlessly switch from speed to power mode as soon as the job requires more cutting power.

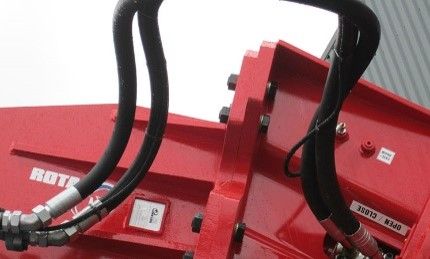

DOUBLE HOSE CONNECTION

The double hose connection on the swivel and large diameter of hoses, bores, and pipes creates optimum oil flow. This connection stops heat building up in the hydraulic system, reducing the RSS’ fuel consumption.



*MAIN FEATURES

A new generation of scrap shears to work in the toughest conditions.
Manufactured according to ISO 9001 standards:

  • Frame made of highly resistant and flexible material (960 WELDOX)

  • Construction: Qualified welders and precision machining centers.

  • A powerful cylinder, they achieve a higher cutting force.

  • Integrated speed valve resulting in high opening and closing speed.

  • 360° Rotation

  • Reversible cutting blades.

  • Protected cutting blades.

  • Cleat system to take advantage of the duration of the blades.

  • Jaw adjustment adapter for good alignment and precise cutting.

  • Easy maintenance.

  • Easy access and protected hydraulic connectors.

  • Easy access and protected hydraulic connectors.

  • Menor consumo de combustible, por sus conducciones y diseño.

  • 6 modelos desde 2,5 ton hasta 12,5 ton.

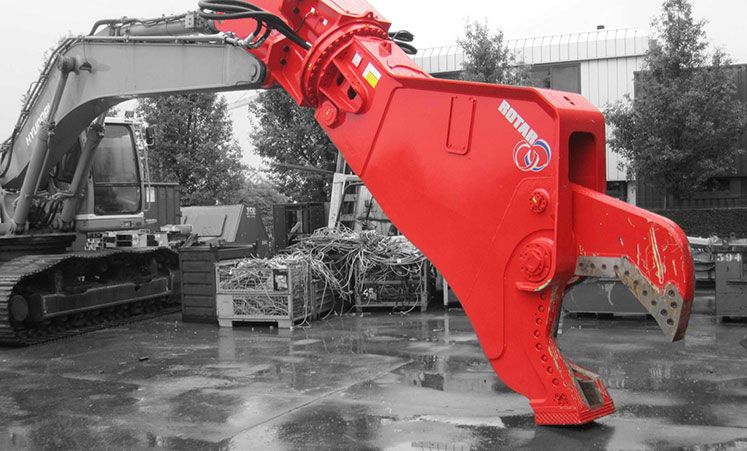

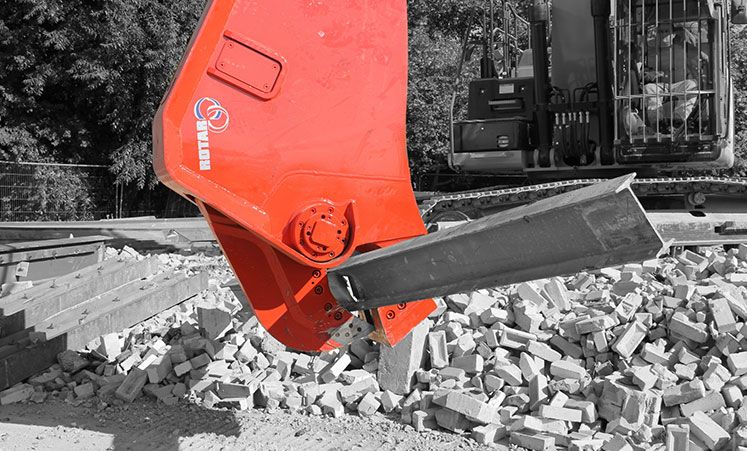

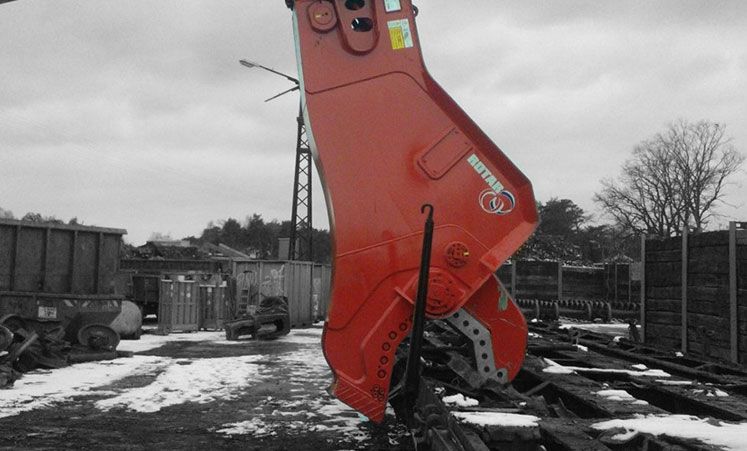

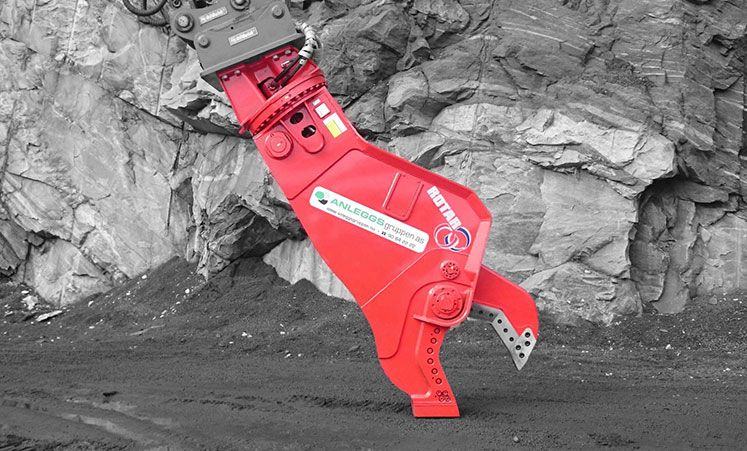

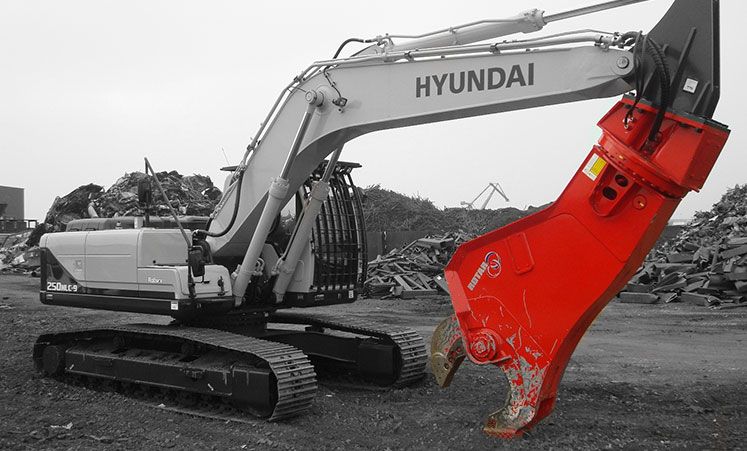

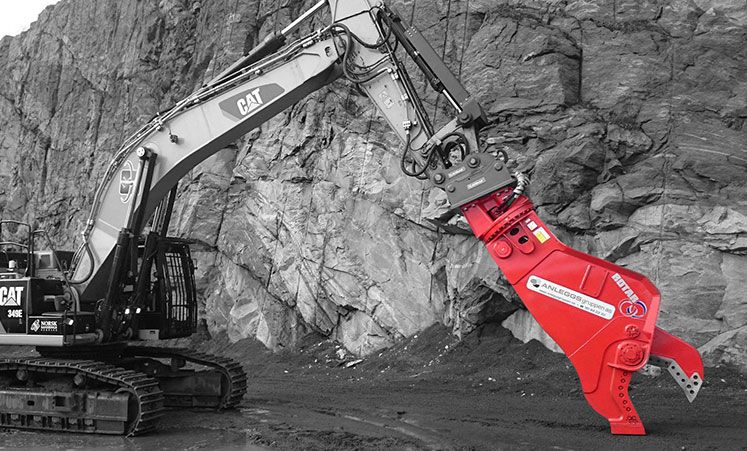

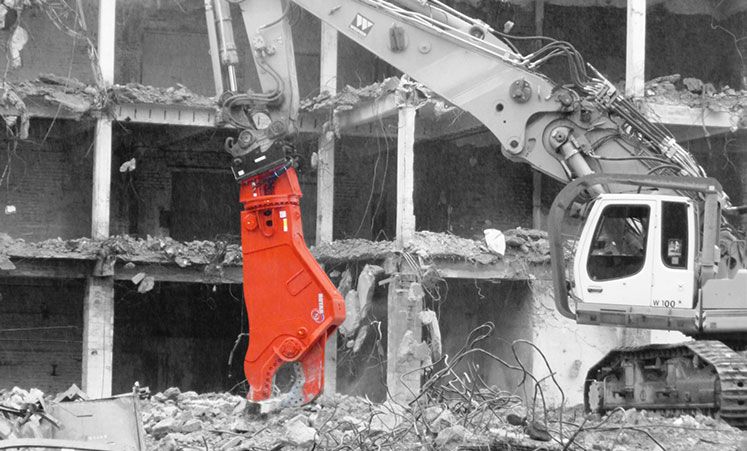

*Pictures of Scrap Shears ROTAR
