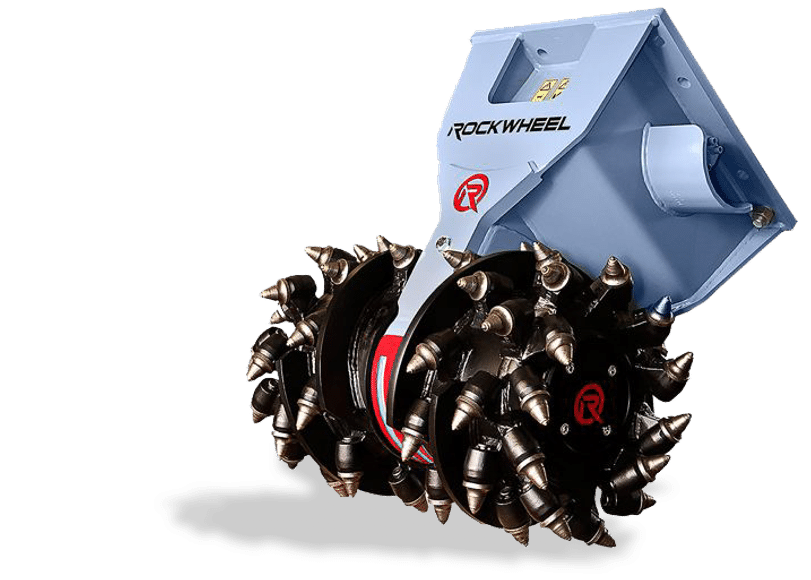

ROCKWHEEL CUTTING UNITS FROM ROCKZONE

ROCKZONE Rockwheel is built on key quality features with technical advancements. Made in Germany and marketed and serviced by a competent network of distributors around the world.

A ROCKZONE Rockwheel cutting unit offers numerous application possibilities: digging a trench more precisely and quickly or reducing rock, demolition of reinforced concrete, profiling and cleaning of the formwork and walls, underwater work, tunneling, chipping or removing stumps of trees, mining, soil milling, mixing, etc.

YOUTUBE
CONTACT
CATALOGUE
FEATURES C2 G5 G5 TWIN D10 D15 D20
 Max. Power (Kw) 9,5 22 44 29 41 70
 Max. Flow (l/min) 60 65 100 112,5 132 320
 Recom. Flow (l/min) 30 40 80 60 120 220
 Max. Pressure (bar) 225 400 400 400 400 400
  Shaft Output Torque 1095 Nm @ 225 bar 3750 Nm @ 320 bar 4288 Nm @ 320 bar 3570 Nm @ 300 bar 6320 Nm @ 320 bar 14272 Nm @ 320 bar
  Power on Picks 8,11 Kn @ 225 bar 21,8 Kn @ 320 bar 24,9 Kn @ 320 bar 17 Kn @ 300 bar 26,6 Kn @ 320 bar 44,2 Kn @ 320 bar
 Output Shaft Speed 98 rpm @ 30 l/min 50 rpm @ 40 l/min 95 rpm @ 80 l/min 80 rpm @ 60 l/min 95 rpm @ 120 l/min 78 rpm @ 220 l/min
 Picks Speed 1,4 m/s @ 30 l/min 0,9 m/s @ 40 l/min 1,7 m/s @ 80 l/min 1,8 m/s @ 60 l/min 2,4 m/s @ 120 l/min 2,2 m/s @ 220 l/min
 Weight (kg) 66 181 192,5 426 595 1.170
 Excavator (tn) 0,7 – 2,5 2,5 – 6 5 – 10 8 – 12 12- 18 18 – 25
 Picks Number 50 32 32 56 64 64
 Holder Size (mm) 14 19,4 19,4 19,4 19,4 25,4
 Drum Diameter (mm) 270 340 340 423 475 646
 Drum Width (mm) 300 405 405 743 832 1058
 Separation (mm) 60 82 82 103 118 143
 Length (mm) 509 618 618 798 937 1155
 Traction Type Chain Gear Gear Direct Direct Direct

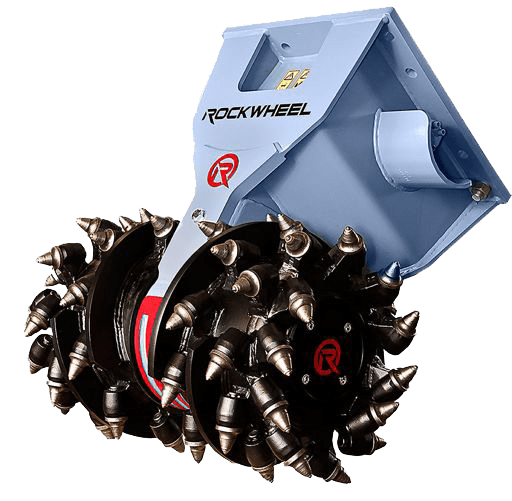

FEATURES D30 G40 G50 G60 G125
 Max. Power (Kw) 110 140 140 220 400
 Max. Flow (l/min) 460 540 540 680 1000
 Recom. Flow (l/min) 320 360 360 540 800
 Max. Pressure (bar) 400 400 400 400 400
  Shaft Output Torque 21376 Nm @ 320 bar 40325 Nm @ 320 bar 37830 Nm @ 350 bar 46990 Nm @ 350 bar 111650 Nm @ 320 bar
 Power on Picks 63,2 Kn @ 320 bar 117,8 Kn @ 320 bar 104,1 Kn @ 350 bar 129,4 Kn @ 350 bar 241,4 Kn @ 320 bar
 Shaft Output Speed 76 rpm @ 320 l/min 49,6 rpm @ 360 l/min 53 rpm @ 360 l/min 64,2 rpm @ 540 l/min 40 rpm @ 800 l/min
 Picks Speed 2,7 m/s @ 320 l/min 1,8 m/s @ 360 l/min 2 m/s @ 360 l/min 2,4 m/s @ 540 l/min 1,94 m/s @ 800 l/min
 Weight (kg) 1444 1800 2458 2478 5420
 Excavator (tn) 26 – 38 30 – 50 42 – 50 50 – 65 65 – 125
 Picks Number 60 54 54 54 76
 Holer Size (mm) 38/30 38 38/30 38/30 38/30
 Drum Diameter (mm) 678 684 726 726 726
 Drum Width (mm) 1161 831 1050 1050 1050
 Separation (mm) 143 202 250 250 250
 Length (mm) 1170 1356 1350 1350 1686
 Traction Type Direct Gear Gear Gear Gear

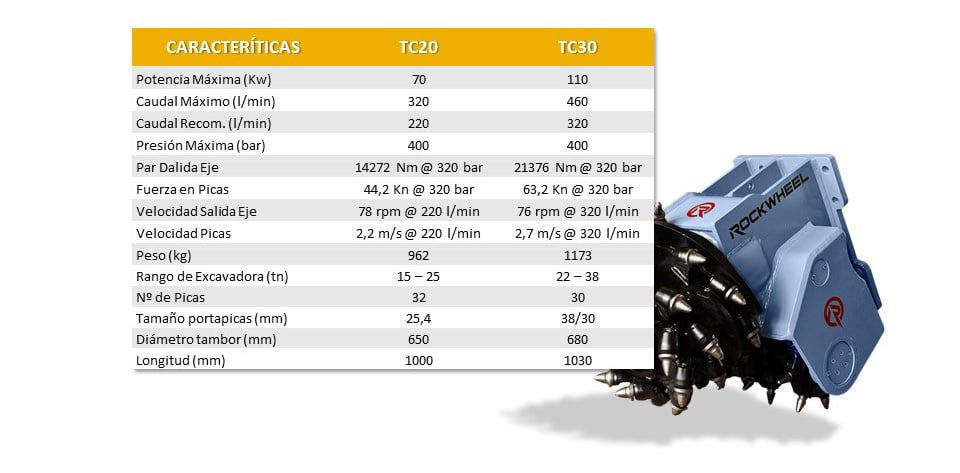

TRENCH Cutters

Special cutters for precise work in the excavation of trenches and channels.

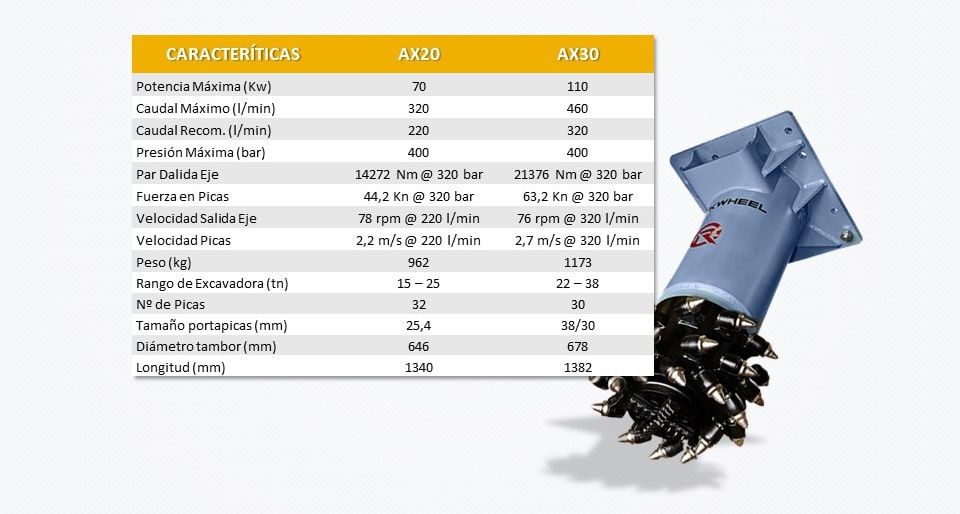

AXIAL Cutters

Cutting units with a special design for vertical work and for excavation of trenches and narrow channels.

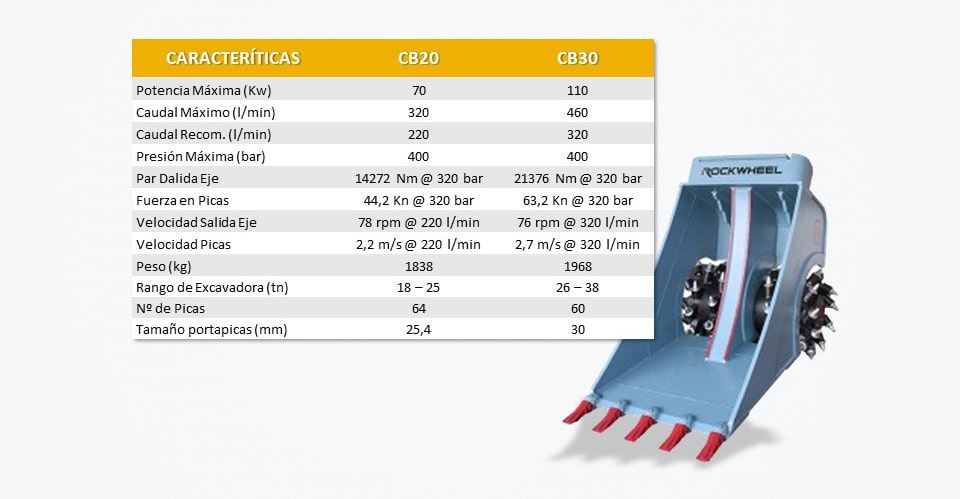

Cutter BUCKETS

Crusher buckets could crush, mix, dig and refill without tool change.
The material is finely ground and can be directly reused.

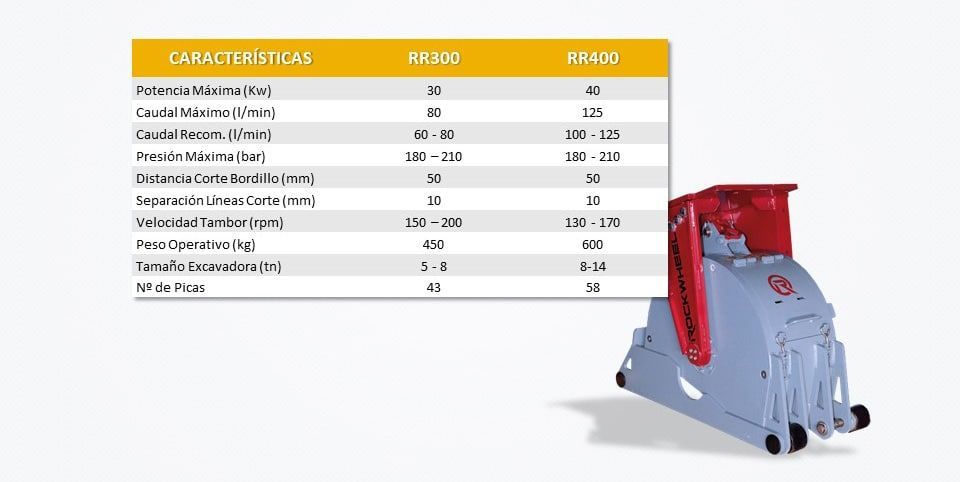

PATCH Planers

Patch Planers are used to create exact mills or to remove surfaces efficiently. Patch Planers are ideal for horizontal, vertical, inclined and ceiling jobs. Excavators and backhoes are optimal load-bearing equipment.

The main features of ROCKZONE Rockwheel cutters are:

  • Only 2 hydraulic connections

  • Robust construction thanks to its solid shaft and bearings and its sealing system

  • Sealing system designed for underwater applications up to 25 m. deep

  • Reduced maintenance times, thanks to the simple change of components

APLICACIÓN Areas

A Rockwheel cutting unit offers numerous application possibilities: digging a trench more precisely and quickly or reducing a reinforced concrete bunker to dust. Profiling and cleaning in building renovations is extremely easy and much quieter than with traditional methods.

01.Trenches and Pipelines

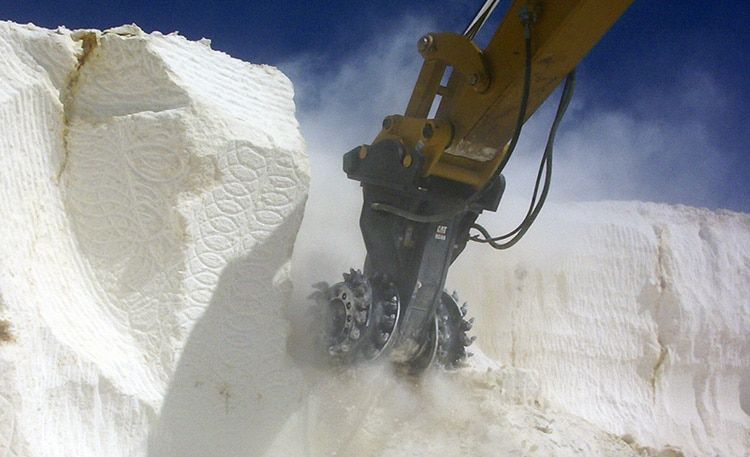

02.Mining

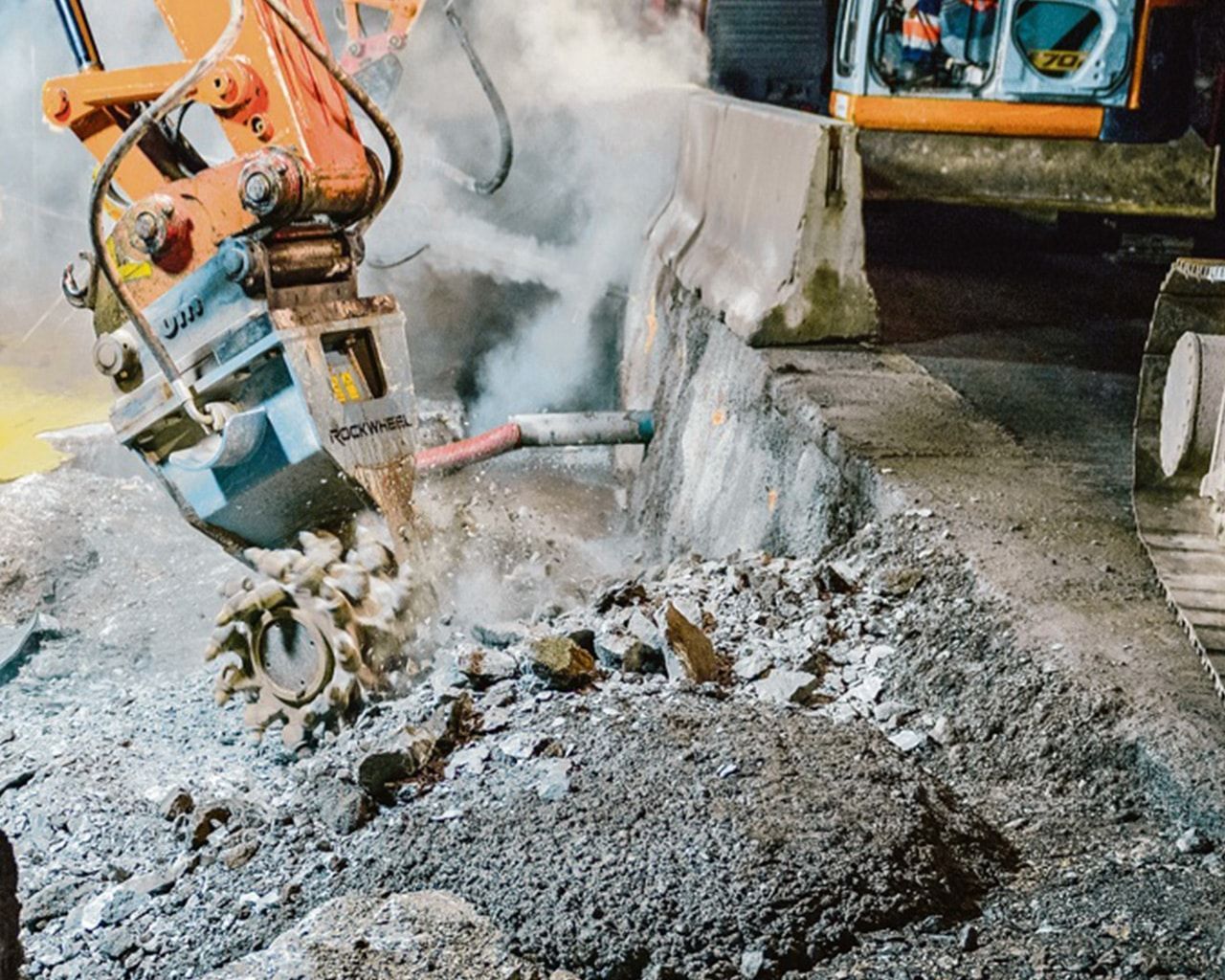

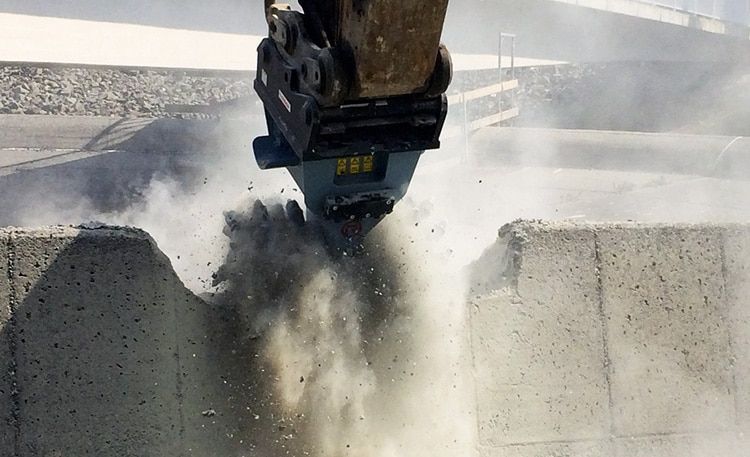

03.Demolition & Concrete

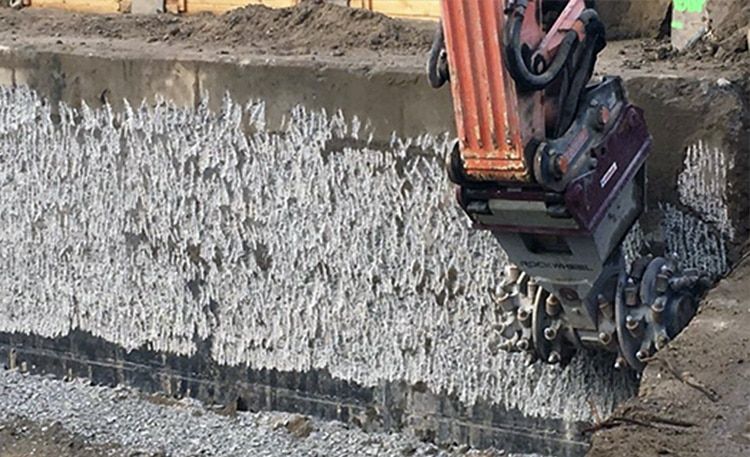

04.Profiling & Cleaning of Buildings

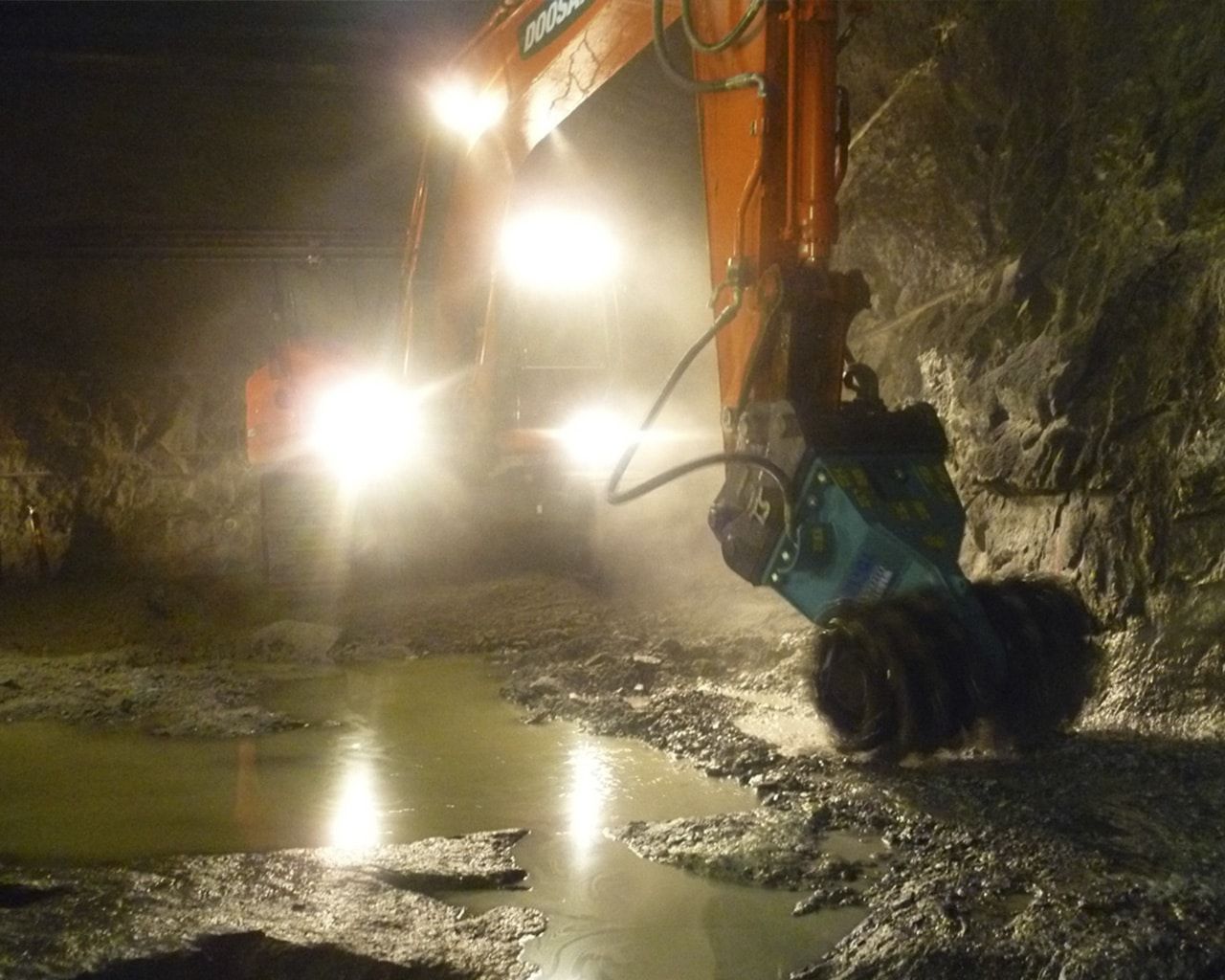

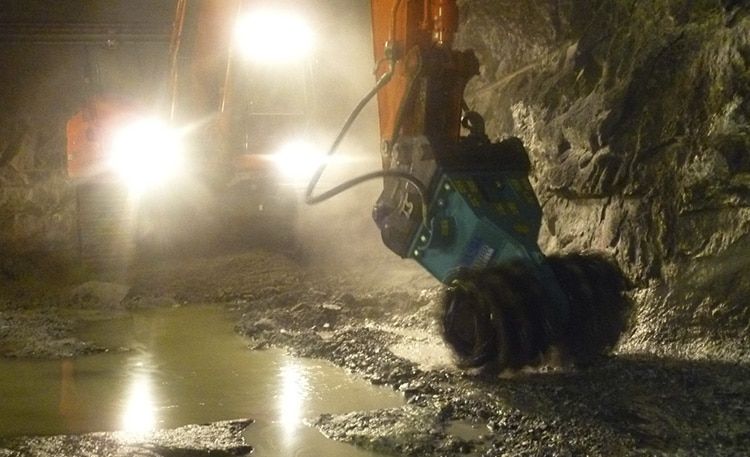

05.Tunnels

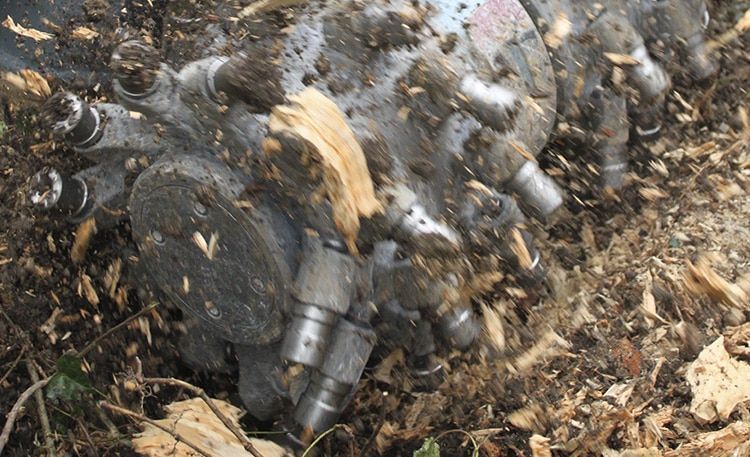

06.Chipped and Stump

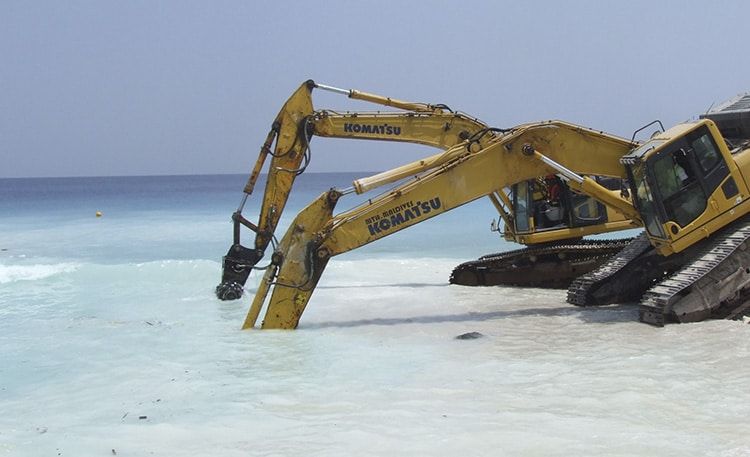

07.Submarine Works

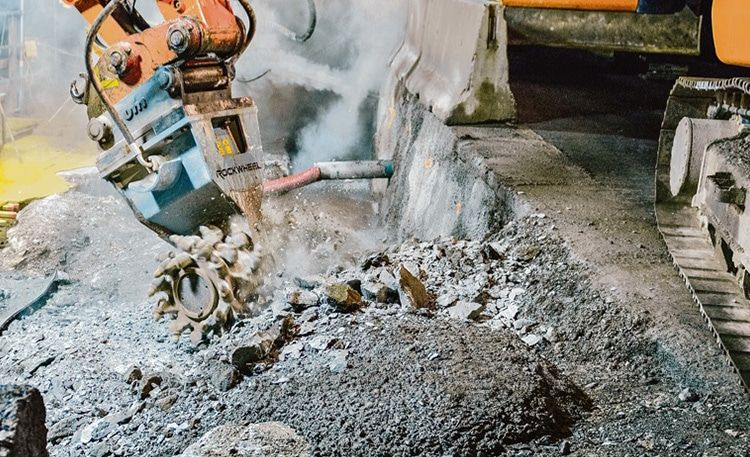

08.Asphalt & Soil Mixing

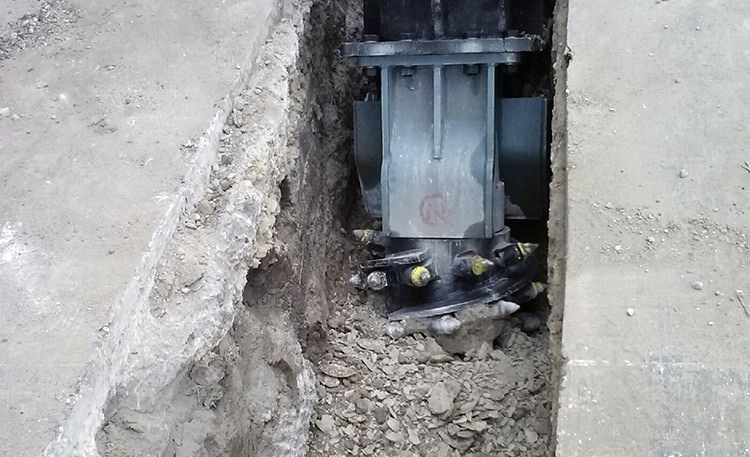

TRENCHES & CHANELS Excavations

More with less time!
Rockwheel cutting units generate perfect homogeneous walls with the precise and dynamic cutting force, always cutting the exact stones from the wide drum and cubing less material with better results. The material is finely ground and can be directly reused. Additional advantages are the less work of vibrations and less noise, in addition to the exact control of the well.

HYDRAULIC HAMMER

  • Smash rocks surrounded by propulsive force
  • Unstable ditch walls
  • Rough, non-vertical trench walls
  • Transport and disposal of uncrushed material
  • Costs more to flatten surfaces
  • High level noise

ROCKWHEEL CUTTING UNIT

  • Does not smash rocks surrounded by propulsion force
  • Perfectly joined and stable trench walls
  • Constant and narrower channels
  • Reusable excavated material
  • Up to 50% less volume excavated
  • High level productivity
  • Quiet and less vibrations

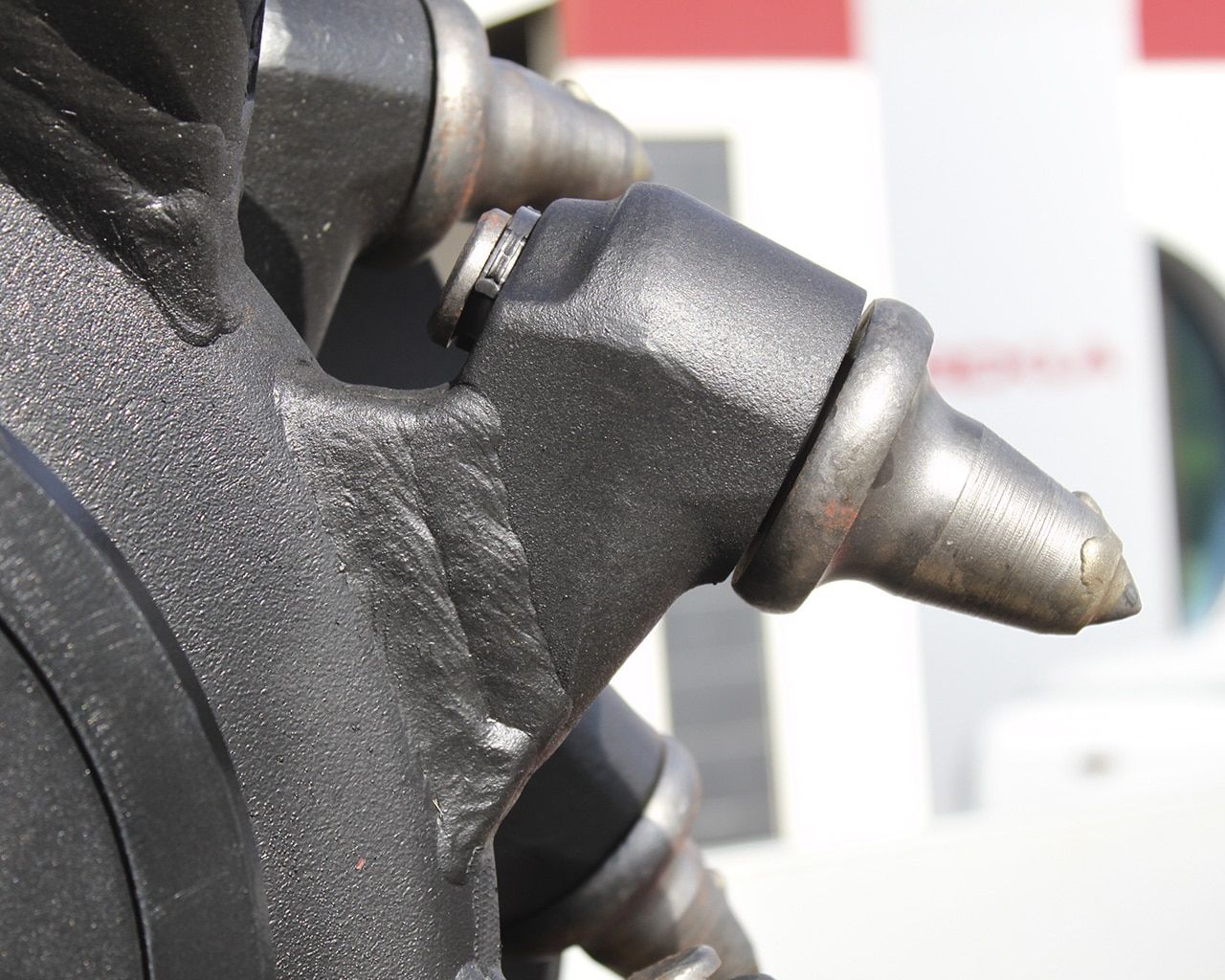

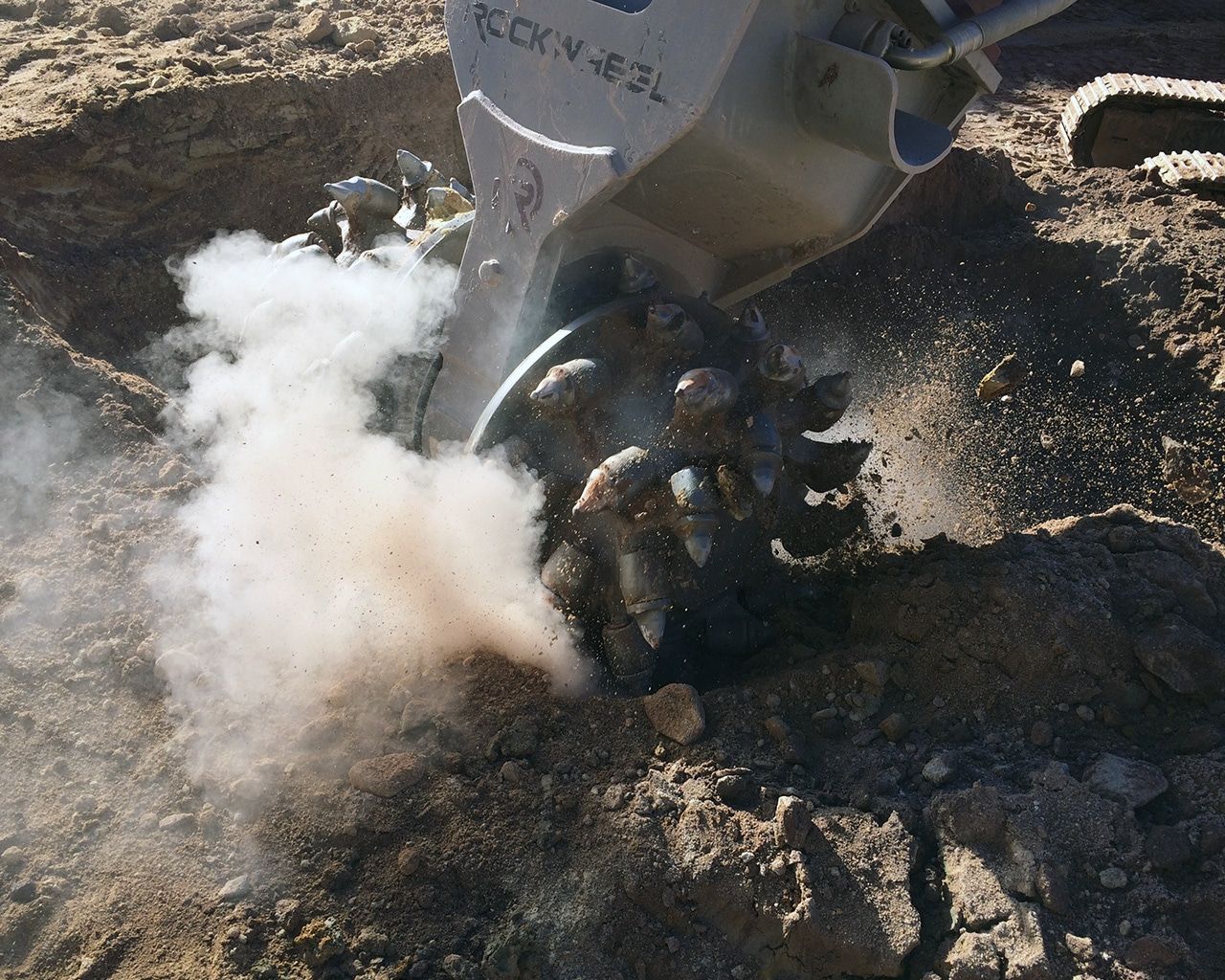

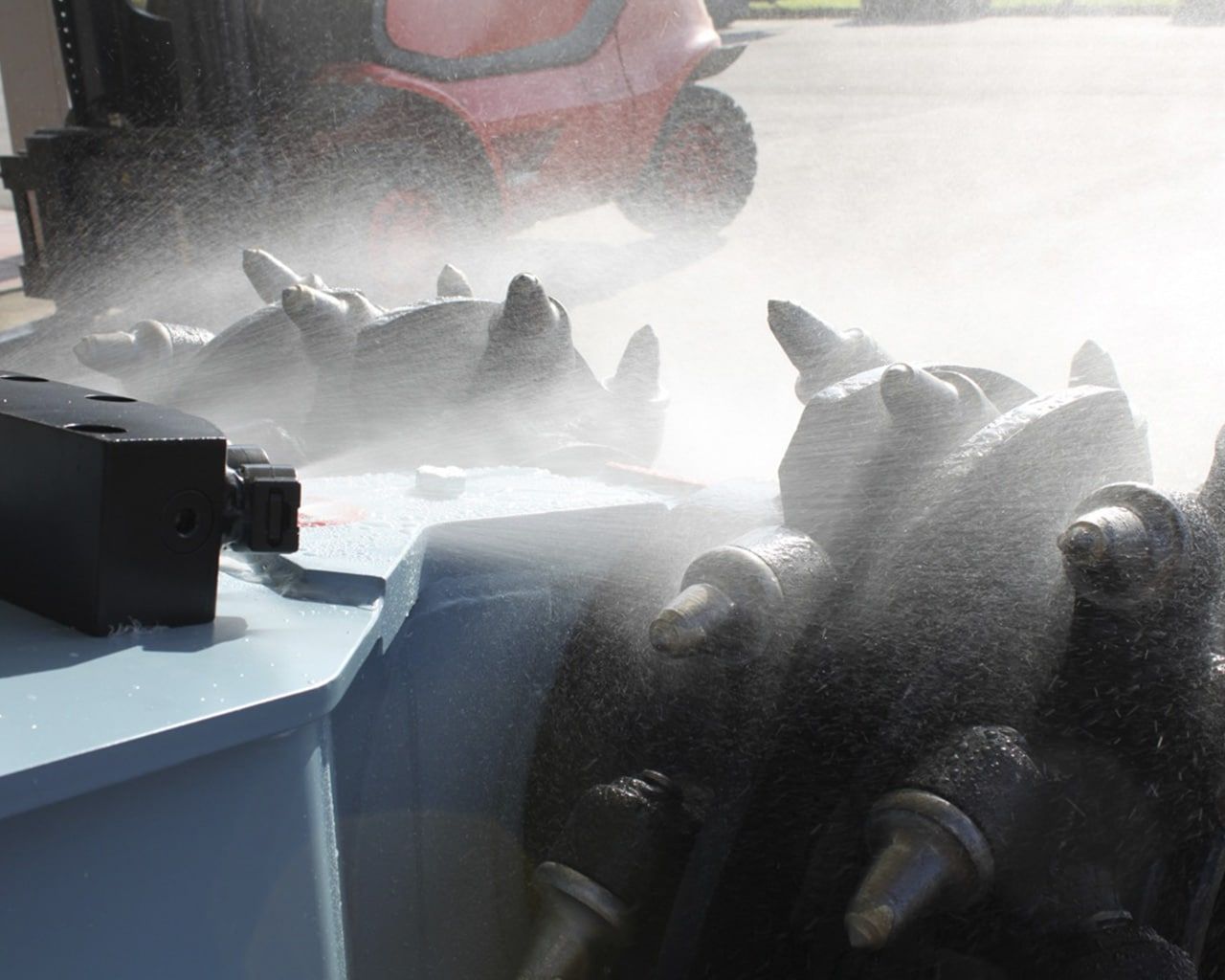

Images of ROCKZONE Rockwheel Cutters
