DISC SCREENING BUCKETS

REMU is a company that manufactures innovative earthmoving accessories including screening, crushing and trench filling buckets.

Our goal is to understand what our customer needs, what work they do, and what features they need from our products. Understanding our customers serves as the basis for product development that is often carried out in cooperation with customers.

Quality is the cornerstone of our operations, the result of the combination of precision engineering, expert welding and trained mechanical personnel with the use of the best available raw materials and a constant monitoring process. We are proud to say that our products are made in Finland.

YOUTUBE
CONTACT US
CATALOGUE

EL SERIES

Small Range Buckets

EL SERIES

  • Excavators up to 3 ton.
  • Loadres up to 1 ton.

EP SERIES

Medium Range Buckets

EP SERIES

(EP3150, EP4150)

  • Excavators up to 14 ton.
  • Loaders up to 7 ton.

EE SERIES

Big Range Buckets

EE SERIES

(EE3160, EE4160, EE3220, EE4240)

  • Excavators up to 25 ton.
  • Loaders up todesde 12 ton.

XO SERIES

Interchangeable Modules Buckets

XO SERIES

  • Excavators up to 5 ton.
  • Loaders up to 1 ton.

EX SERIES

Medium Range Buckets

EX SERIES

  • Excavators up to 16 ton.
  • Not Availableon Loaders

PD SERIES

Big Range Buckets

PD SERIES

  • Excavators up to 25 ton.
  • Loaders up to 10 ton.
FEATURES EL 2085 EP 3150 EP 4150 EE 3160 EE 4160 EE 3220 EE 4220 EE 4290 EX 140 PD 2160 PD 3160
Excavadora Weight (ton) 3 14 18 25 30 35 40 N/A 16 25 30
Loaders Weight (ton) 1 7 9 12 14 14 18 21 N/A 10 12
Flow Min-Max (l/min) 25-35 55-95 80-110 155-235 155-235 155-235 155-235 155-235 155-235 80-160 120-240
Pressure Max. (bar) 110 210 210 210 210 210 250 250 210 300 300
Volume ISO/SAE (m3) 0.15-0.18 1.0-1.1 1.3-1.4 2.1-2.4 2.7-3.0 3.0-3.3 3.7-4.2 4.8-5.5 0.9-1.1 1.4-1.7 2.0-2.3
Screen Area (m2) 0.2 1.1 1.4 1.5 1.8 1.9 2.5 3.3 0.8 1.1 1.5
Width (cm) 109 190 190 200 200 260 260 330 126 214 214
Deep (cm) 63 123 123 169 169 169 169 175 128 166 166
Height (cm) 64 119 139 158 180 158 180 180 137 137 160
Weight (kg) 240 1.280 1.500 2.470 2.780 3.090 3.560 4.620 1.400 2.440 2.610

*APLICATIONS

REMU Screening Bucket has a multitude of applications: topsoil preparation, composting, wood, soils, wetlands, minerals and recycling are the most common applications of these screening equipment. The final classified product can be used as a clean, high-quality floor, free of large stones, etc.

They can also be used to mix sand, cement, lime, clay, and compost to achieve the desired consistency required for a specific use.

Shredding and screening of minerals, coal, phosphates, clinker, etc.

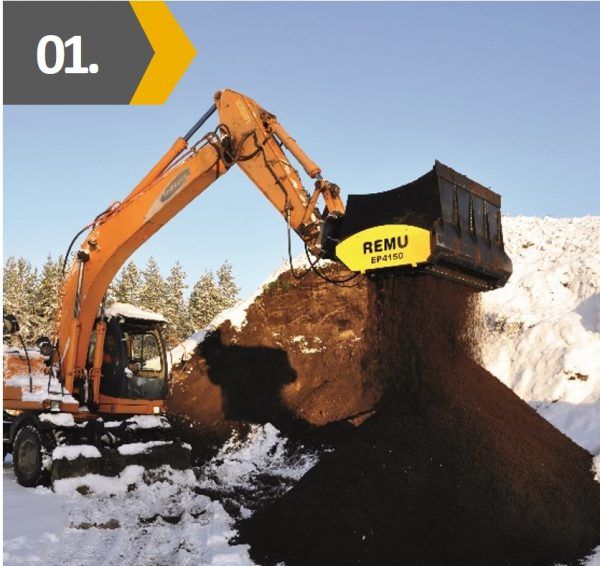

Organic Waste Screening

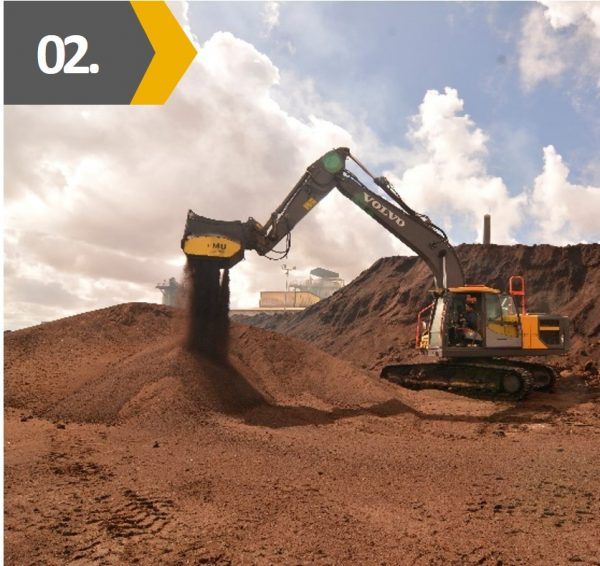

Topsoil Screening

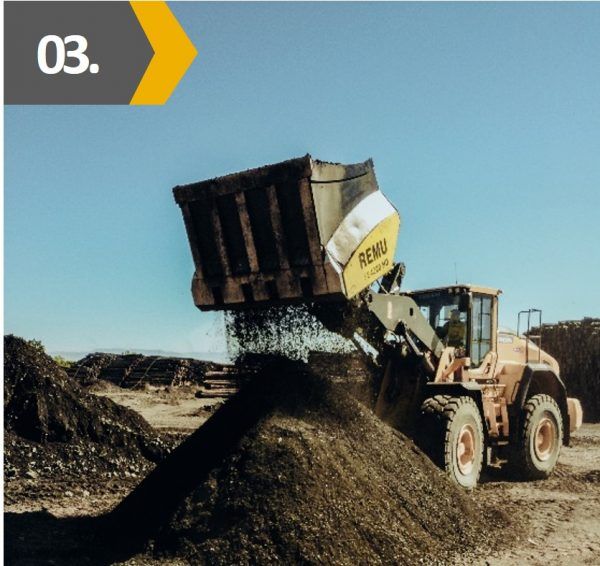

Aeration and Compost Mixing

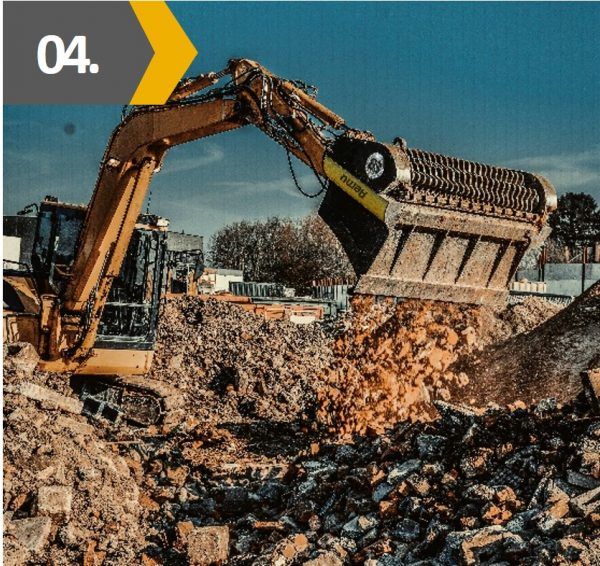

Demolition Waste Recycling

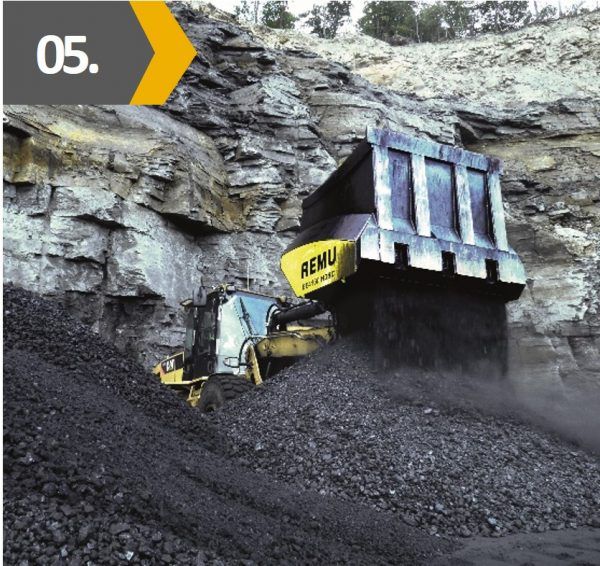

Coal Processing

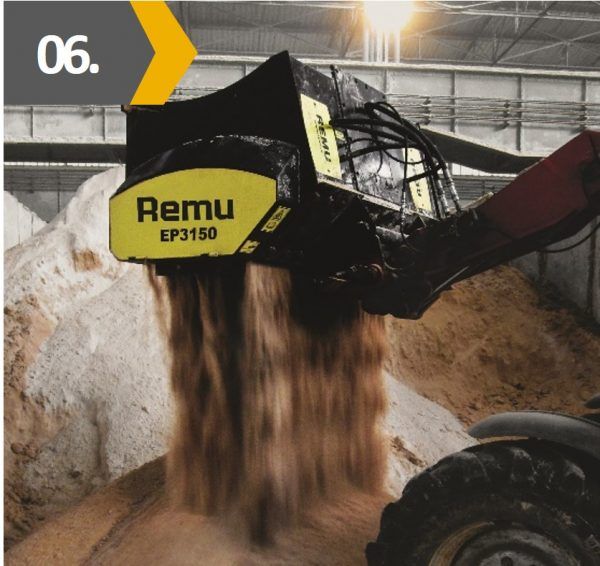

Gypsum Processing

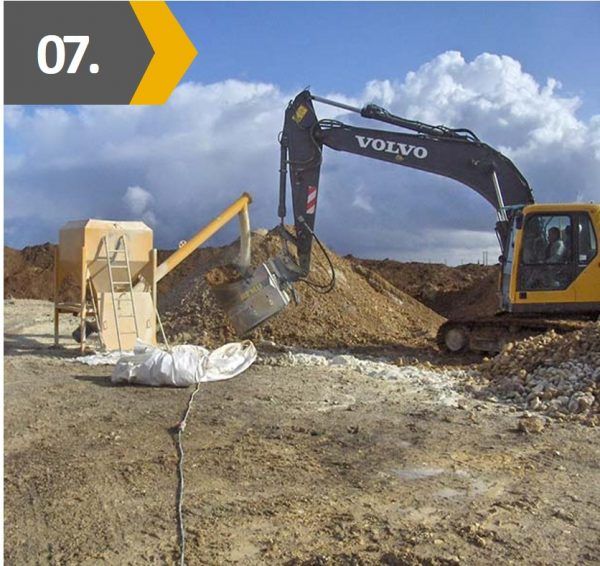

Soil Stabilization

Trench Filling

*XO BUCKETS SERIES

CHANGE THE MODULE INSTEAD OF THE WHOLE BUCKET

The “Crossover” bucket is a totally new concept in the implement sector. A single bucket frame coupled with multiple work modules facilitates a quick transition between jobs.

This bucket is the perfect choice if you have to process various types of material. With the different modules with different sizes of light and types of disc, our customers can process different materials without having to buy several buckets.



*Technical Advantages

  • Execute various types of work with a single bucket frame.
  • It processes different materials: topsoil, compost etc.
  • It completely changes the screening technique from disc system to vibratory system or vice versa.
  • Alternate between crushing or just screening.



FEATURES XO 2090 XO 2150
+SB/SC +SV +SB/SC +SV +CM
 Excavator Weight (ton) 5 5 8 8 8
 Loader Weight (ton) 1 1 2 2 2
 Flow Min-Max (l/min) 32-80 20-40 40-80 20-40 50-120
 Pressure Max. (bar) 300 300 300 300 250
 Volume ISO/SAE (m3) 0.32-0.37 0.32-0.37 0.52-0.60 0.52-0.60 0.52-0.60
 Screen Area (m2) 0.5 0.5 0.8 0.7 N/A
 Width (cm) 125 125 185 185 185
 Deep (cm) 97 113 115 109 125
 Height (cm) 88 88 88 88 88
 Weight (kg) 580 385 810 510 610

* MODULES XO

*Pictures about Screening Buckets REMU
