Hydraulic Magnets

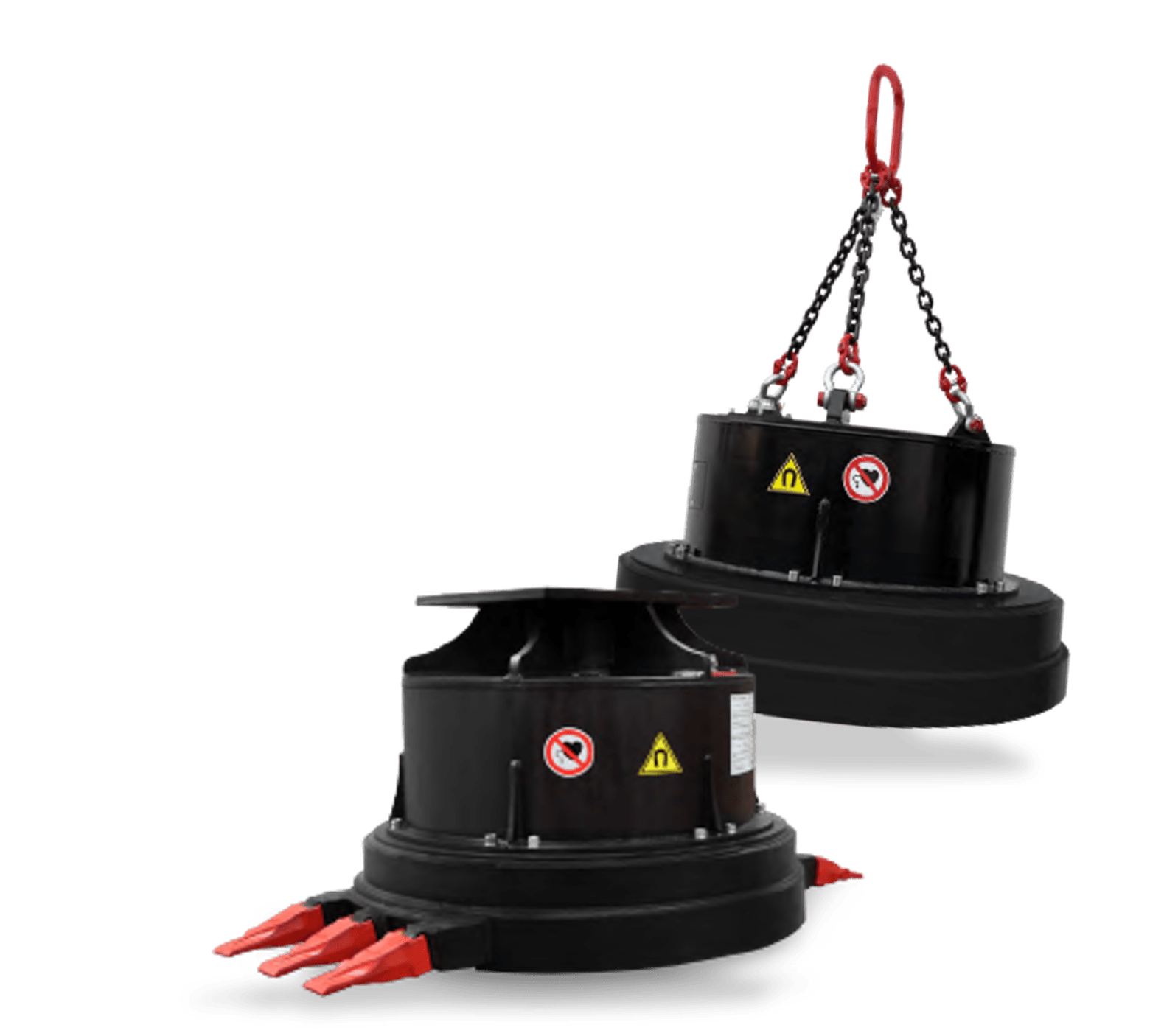

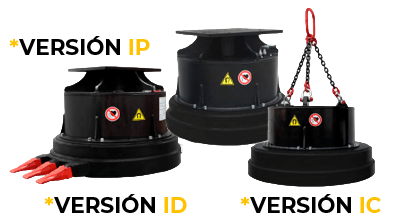

The range of ATIB Hydraulic Magnets is designed for the collection and handling of ferrous materials in demolition, recycling, and scrap processing applications. Thanks to their practical and efficient design, they deliver outstanding performance and can be easily fitted to excavators, loaders, and other heavy machinery.

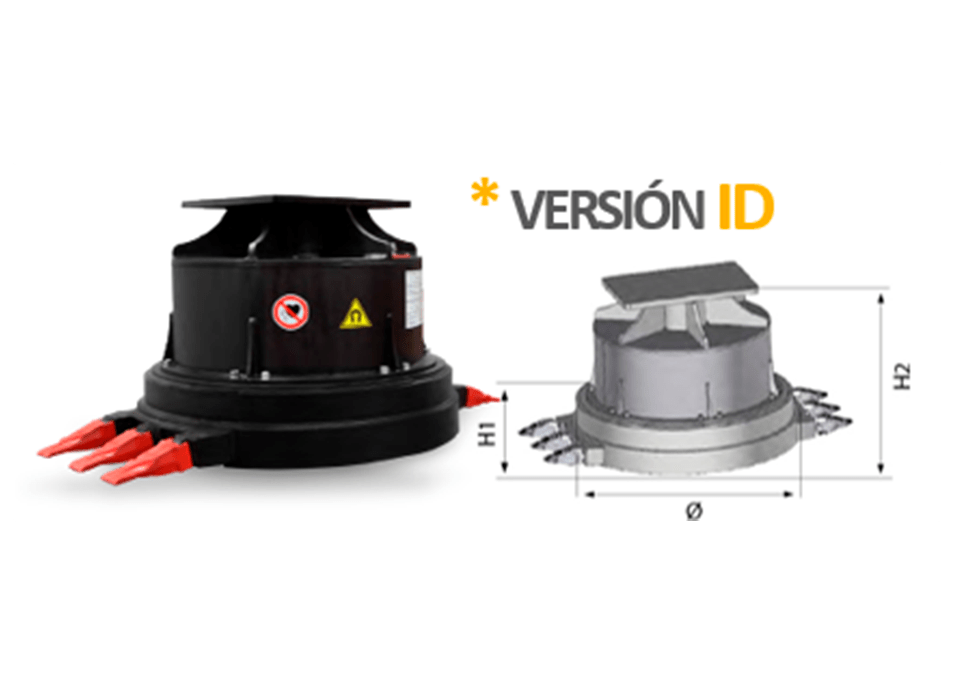

ID hydraulic magnets with teeth are primarily designed for demolition works. Their teeth allow operators to rake through debris and facilitate the recovery of ferrous materials. They also feature a quick-change system for greater convenience and simplified maintenance.

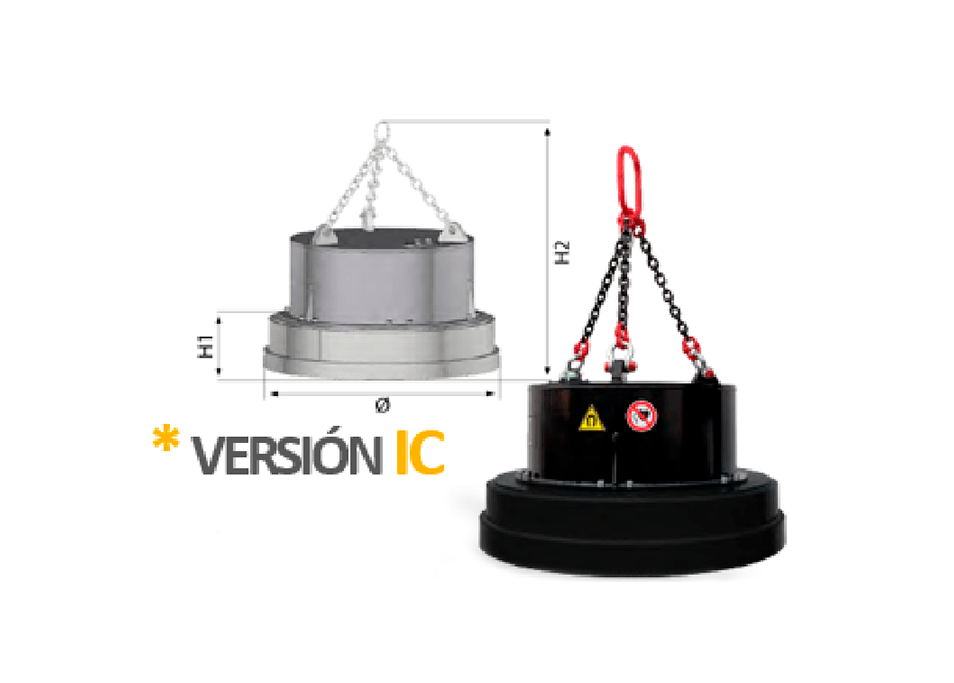

IC hydraulic magnets with chain are designed for scrap handling and cleaning operations in recycling plants and scrap yards. They offer an excellent capacity-to-weight ratio and can be used on both loaders and excavators.

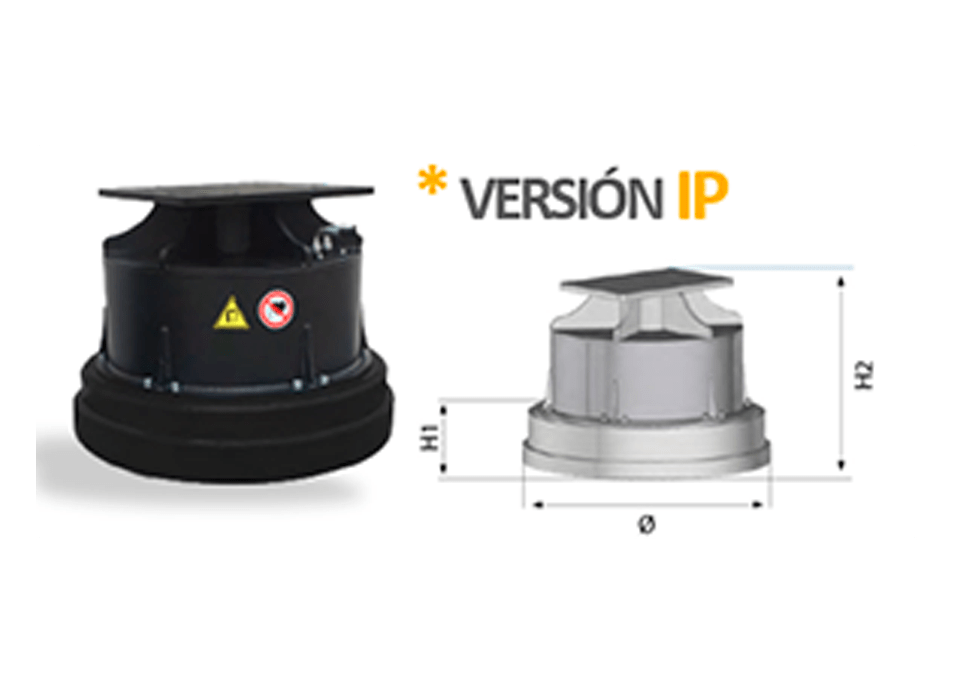

IP hydraulic magnets with plate are equipped with a quick-coupling plate that allows operation without manual intervention from the operator, improving precision when handling materials and enabling compatibility with different types of machinery.
Light Range
| Characteristics | 75IC | 75IP | 75ID | 85IC | 85IP | 85ID | 96IC | 96IP | 96ID |
|---|---|---|---|---|---|---|---|---|---|
| Carrier Weight (t) | 7-15 | 8-15 | 8-15 | 9-16 | 10-16 | 10-16 | 12-20 | 13-20 | 14-20 |
| Oil Flow (l/min) | 50-120 | 50-120 | 50-120 | 50-120 | 50-120 | 50-120 | 50-120 | 60-130 | 60-130 |
| Max Pressure (bar) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Diameter (mm) | 750 | 750 | 750 | 850 | 850 | 850 | 960 | 960 | 960 |
| Base Height H1 (mm) | 245 | 245 | 245 | 245 | 245 | 245 | 260 | 260 | 260 |
| Total Height H2 (mm) | 1200 | 750 | 750 | 1200 | 750 | 750 | 1200 | 750 | 750 |
| Power (kW) | 2.6 | 2.6 | 2.6 | 3.4 | 3.4 | 3.4 | 4.5 | 4.5 | 4.5 |
| Weight (kg) | 600 | 680 | 730 | 740 | 820 | 880 | 840 | 940 | 1030 |
| Voltage (V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
Medium Range
| Characteristics | 105IC | 105IP | 105ID | 114IC | 114IP | 114ID |
|---|---|---|---|---|---|---|
| Carrier Weight (t) | 16-25 | 17-25 | 17-25 | 18-27 | 20-28 | 20-28 |
| Oil Flow (l/min) | 70-140 | 70-140 | 70-140 | 80-140 | 80-140 | 80-140 |
| Max Pressure (bar) | 200 | 200 | 200 | 200 | 200 | 200 |
| Diameter (mm) | 1050 | 1050 | 1050 | 1140 | 1140 | 1140 |
| base height H1 (mm) | 270 | 270 | 270 | 270 | 270 | 270 |
| Total Height H2 (mm) | 1350 | 800 | 800 | 1350 | 800 | 800 |
| Power (kW) | 5.5 | 5.5 | 5.5 | 6 | 6 | 6 |
| Weight (kg) | 1200 | 1300 | 1450 | 1300 | 1400 | 1550 |
| Voltage (V) | 220 | 220 | 220 | 220 | 220 | 220 |
Heavy Range
| Characteristics | 126IC | 126IP | 126ID | 150IC | 150IP | 150ID |
|---|---|---|---|---|---|---|
| Carrier Weight (t) | 22-32 | 24-35 | 24-35 | 30-40 | 30-40 | 32-45 |
| Oil Flow (l/min) | 100-150 | 100-150 | 100-150 | 120-150 | 120-150 | 120-150 |
| Max Pressure (bar) | 200 | 200 | 200 | 200 | 200 | 200 |
| Diameter (mm) | 1260 | 1260 | 1260 | 1500 | 1500 | 1500 |
| base height H1 (mm) | 270 | 270 | 270 | 300 | 300 | 300 |
| Total Height H2 (mm) | 1400 | 800 | 800 | 1450 | 830 | 830 |
| Power (kW) | 7.5 | 7.5 | 7.5 | 12 | 12 | 12 |
| Weight (kg) | 1600 | 1700 | 1850 | 2450 | 2650 | 2900 |
| Voltage (V) | 220 | 220 | 220 | 220 | 220 | 220 |
The main features of these hydraulic magnets are:

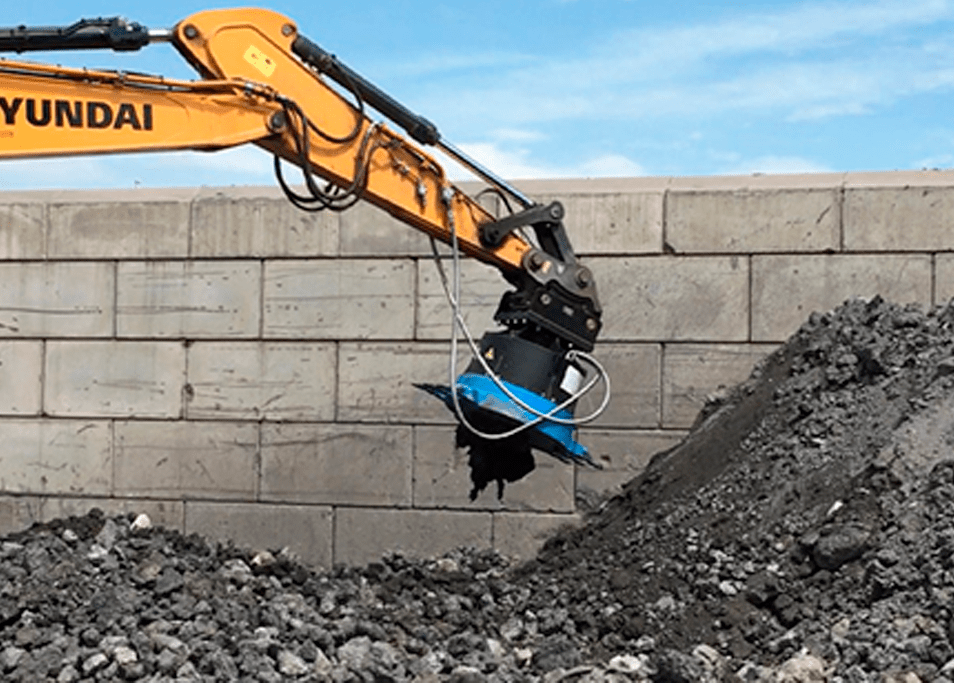

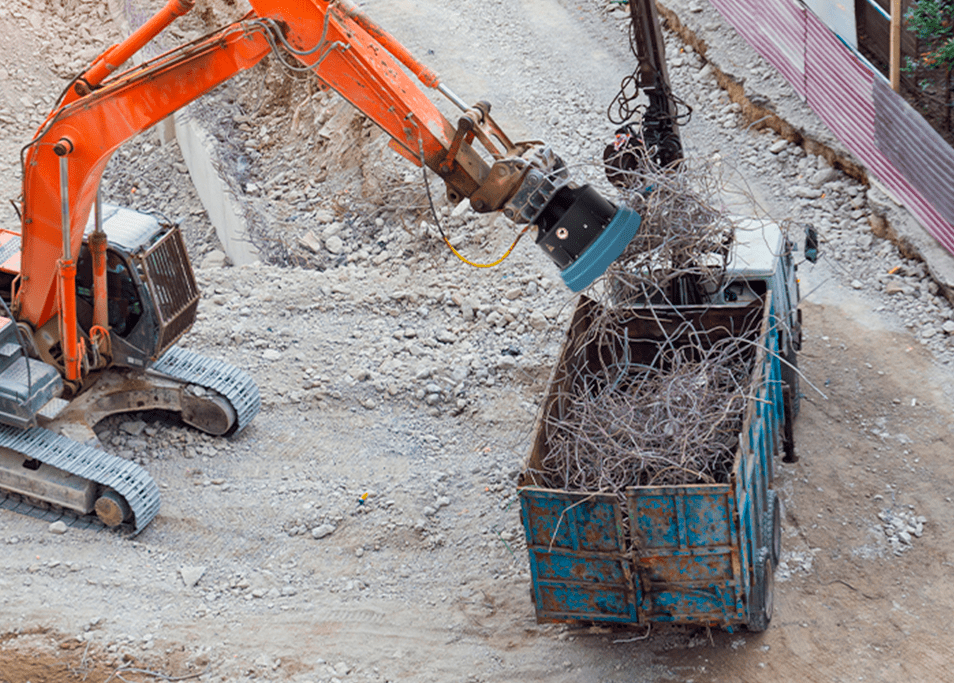

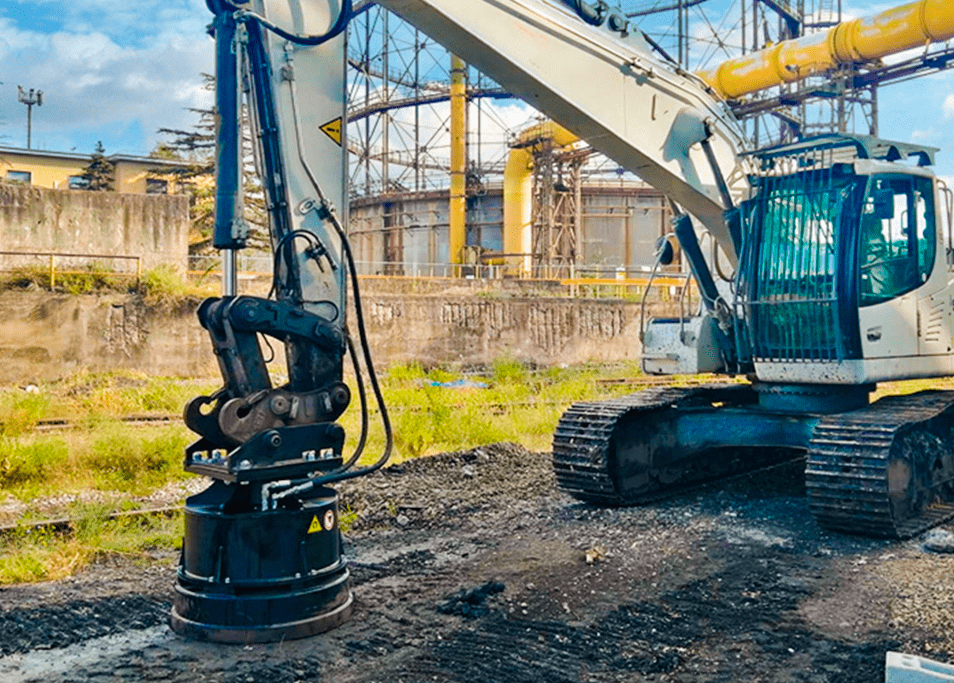

ATIB Hydraulic Magnets Gallery
