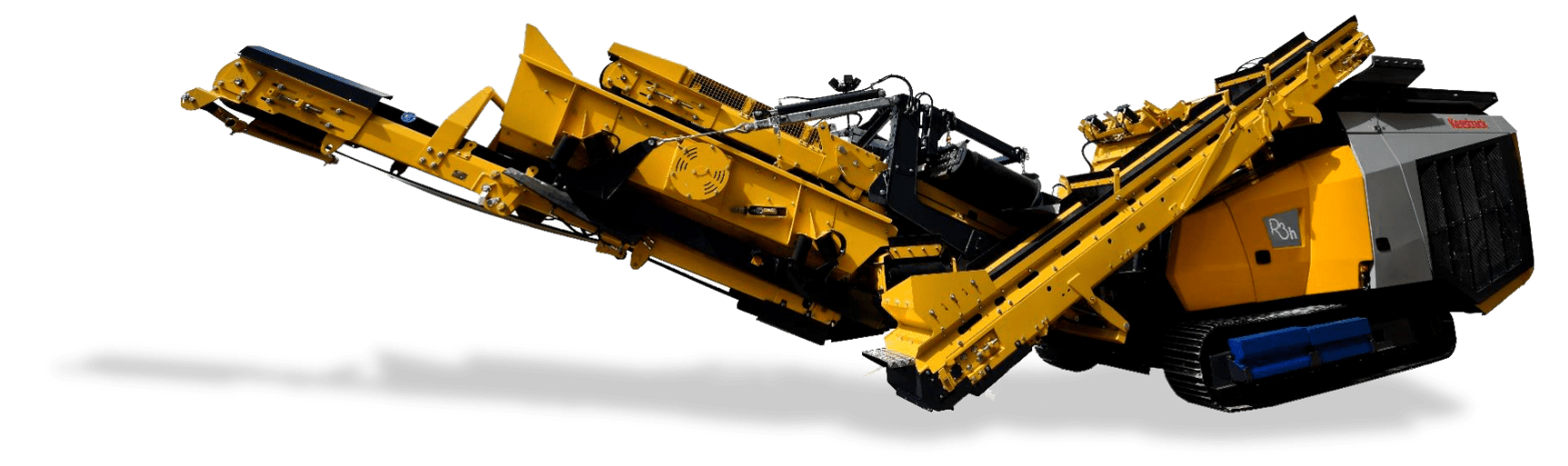

MOBILE IMPACT CRUSHERS

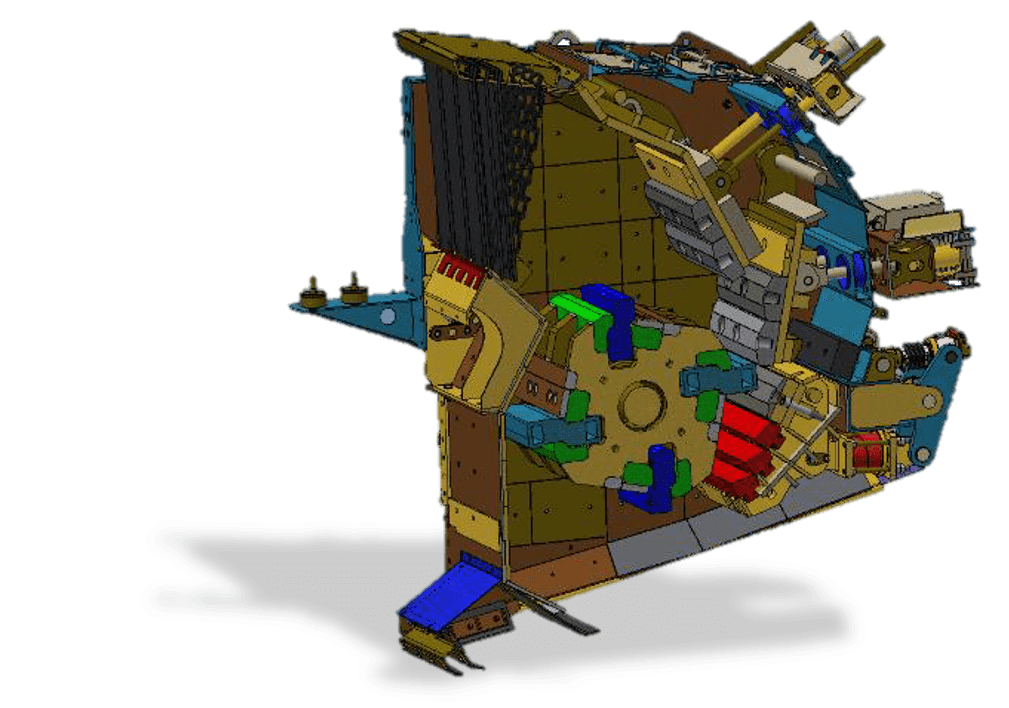

KEESTRACK R-Series Mobile Impact Crushers deliver unmatched performance through innovative engineering. The feature a high-performance crushing chamber, a direct-drive electric version, a Dolly transport system, a patented tilting chassis, and the Relytec control system.

Our range of jaw crushers, cone crushers, and impact crushers delivers unmatched performance and outstanding mobility across a wide variety of applications.

YOUTUBE

CONTACT

CATALOGUE

SPECIFICATIONS	R3	R5	R6
Engine	VOLVO	CUMMINS	CUMMINS
Engine Power (hp)	350	520	608
Feed Opening (mm)	960 x 770	1.050 x 900	1.300 x 970
Production Capacity (tn/h)	250	350	500
Hopper capacity (m3)	3,5	5	7
Hydraulic Adjustment	SI	SI	SI
Diesel-Hydraulic Fuel Consumption (l/h)	40	60	60
Diesel-Electric Fuel Consumption (l/h)	30	50	45
Electric Power Consumption (kW/h)	122	200	200
Display	SI	SI	SI
Main Convetor Width (mm)	1.000	1.100	1.400
Side Conveyor Width (mm)	500	650	650
Total Weight / With Screen (tn)	24,5 / 33	42,5 / 50	50 / 60
Post-Screen (m3)	4,3	4,5 (1 ó 2 decks)	6,75 x2

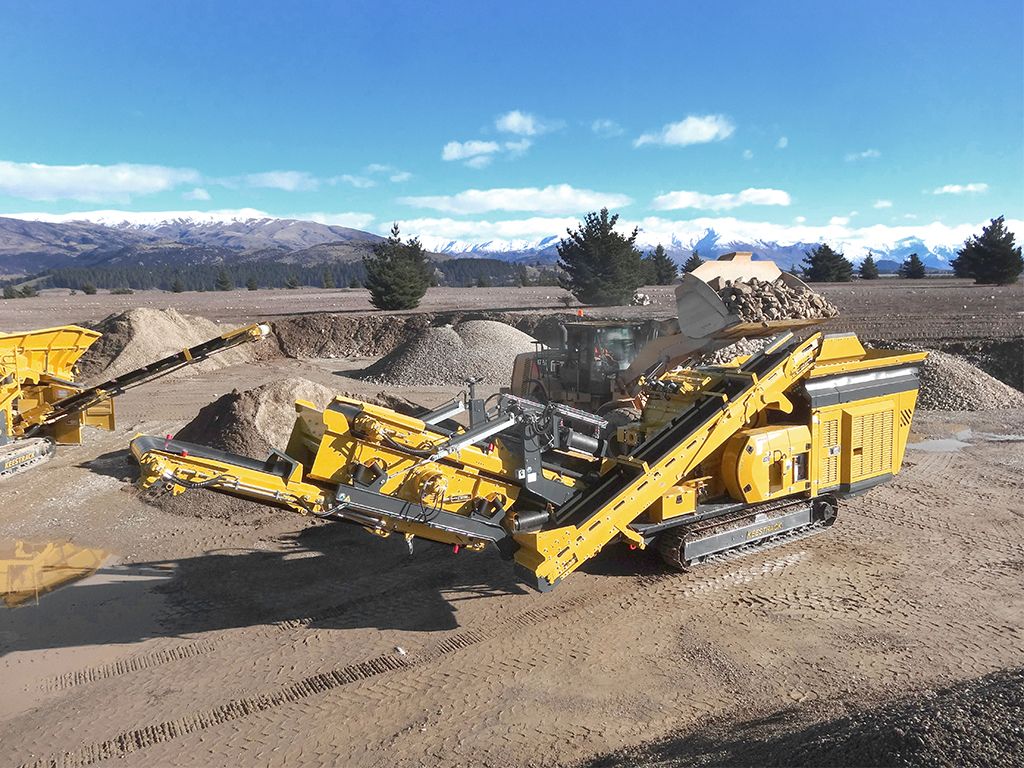

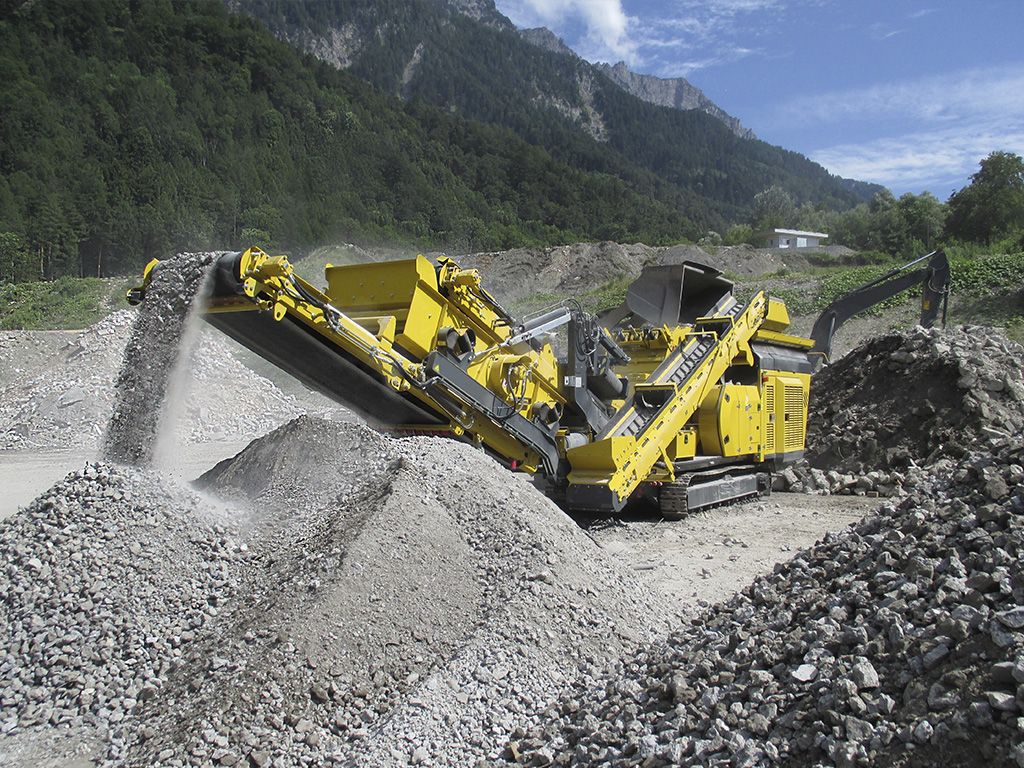

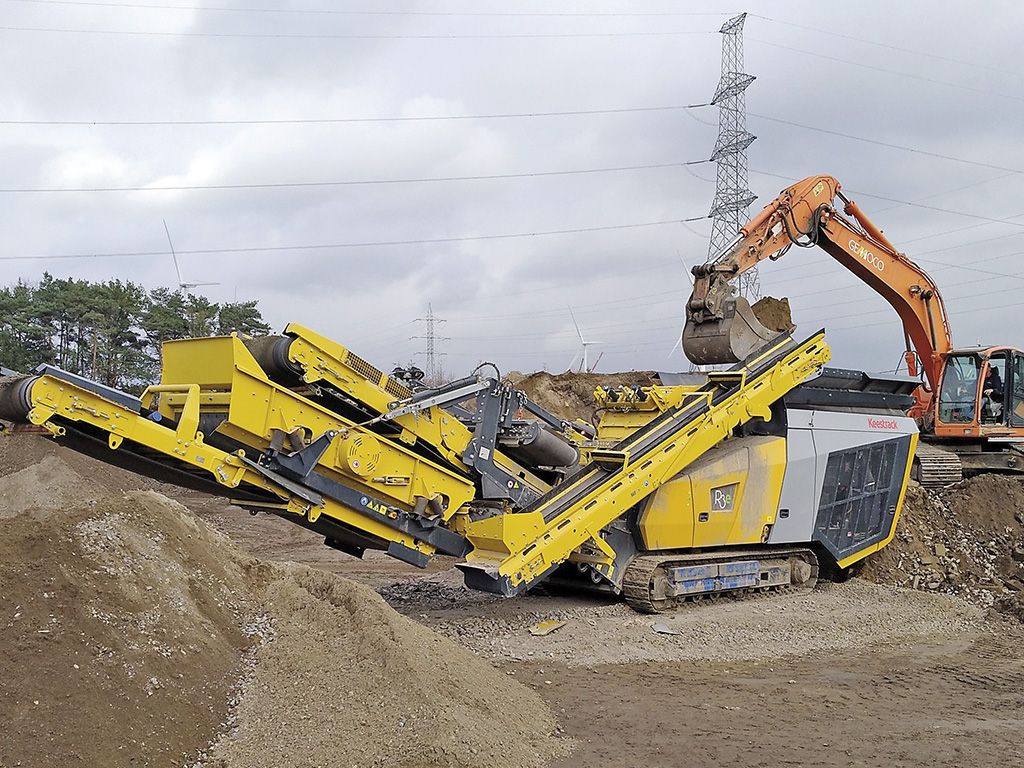

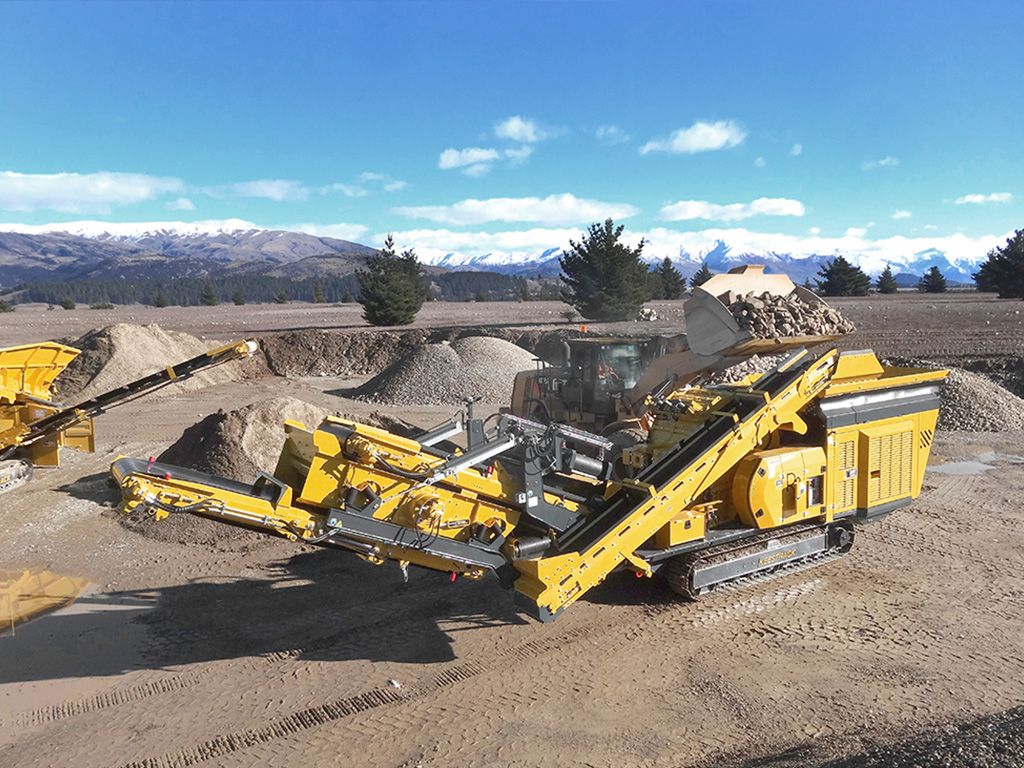

KEESTRACK R3

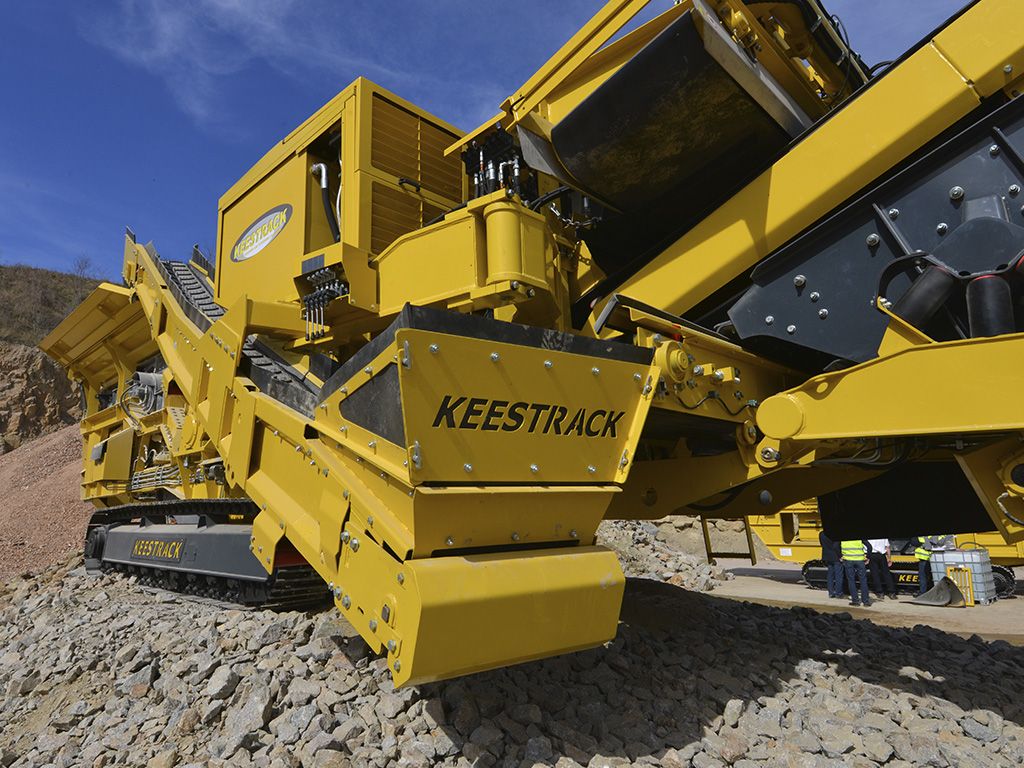

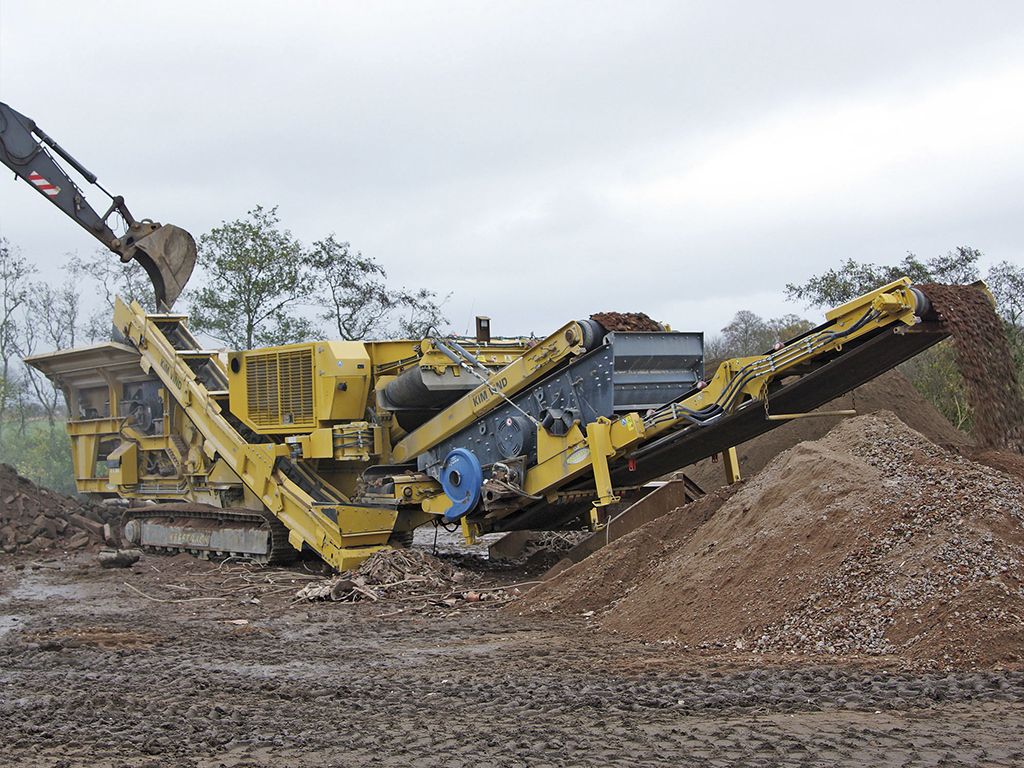

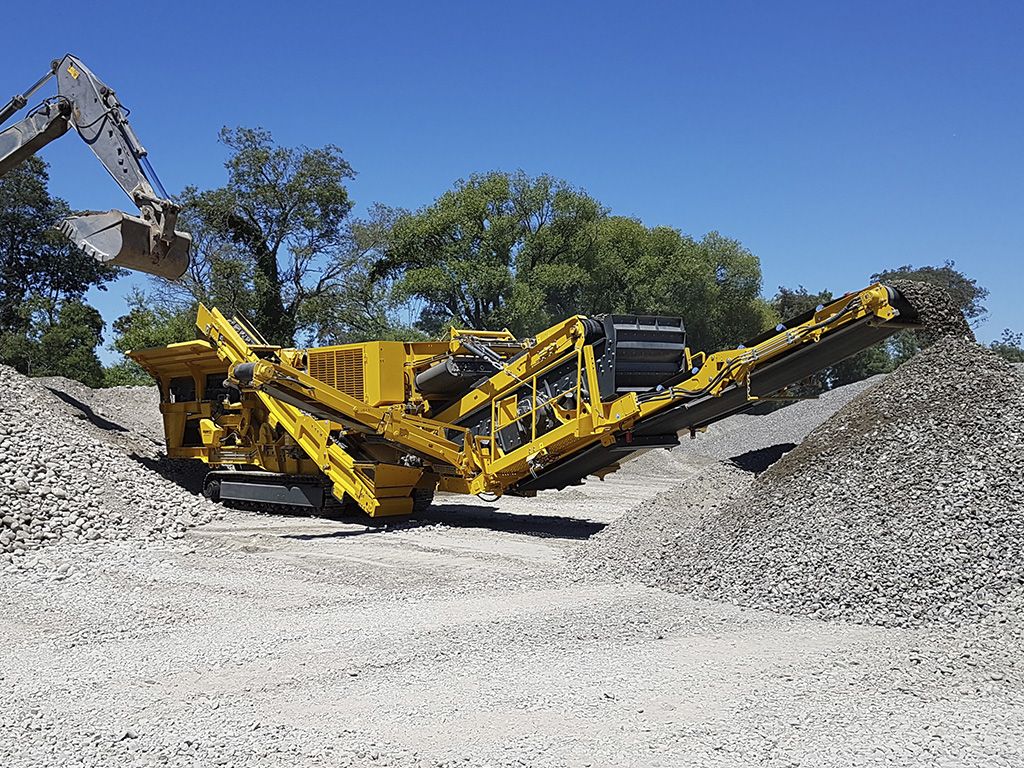

KEESTRACK R5

KEESTRACK R6

MOBILITY

Todos los equipos Keestrack ofrecen la mayor movilidad del mercado sin sacrificar la productividad.

REMOTE MONITORING

Keestrack-er le permite controlar su máquina de manera remota las 24 horas del día, con lo que reducirá el tiempo de parada y mejorará su rentabilidad.
