SORTING DEMOLITION GRAB

ROTAR company, located in the Netherlands, is a company specialized in the construction of equipment for demolition and recycling, so popular for the manufacture of screening buckets, handling grabs, shears, and cutting units.

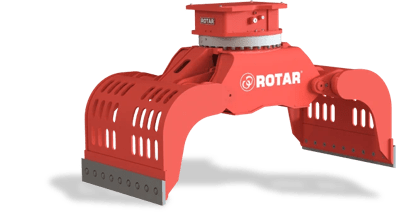

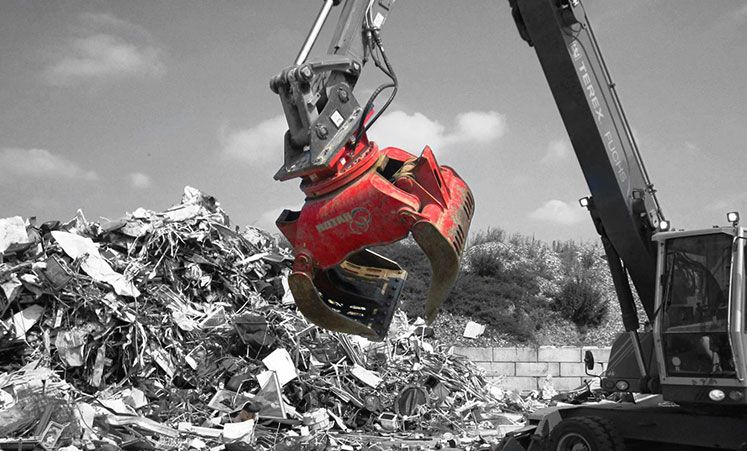

The RG Handling Grab is the ideal attachment for handling, sorting and knocking down. It is made from the toughest components on the market and is ideal for heavy duty and demolition jobs. It has two opening and closing valves and a 360º rotation hydraulic system.

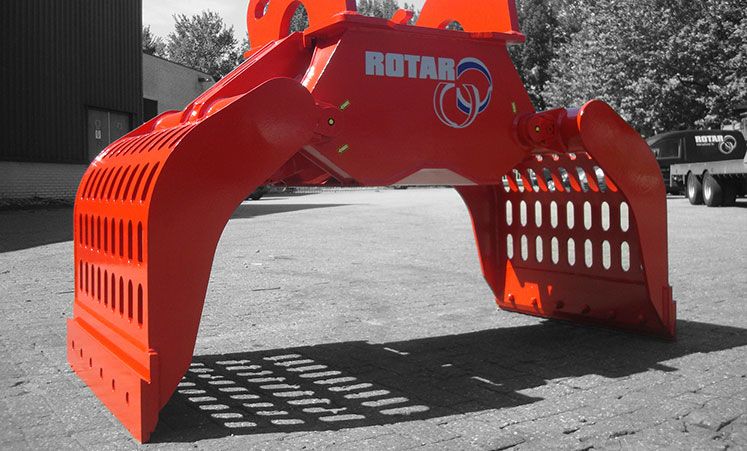

Its rib-type built shells facilitate the output of fine materials that have the materials to be selected.

YOUTUBE

CATALOGUE

FEAUTURES	5-N	9-N	12-N	15-N	22-N	30-N	40-N	50-N	60-N
Weight (kg)	210	435	900	1015	1350	1600	2000	2200	3950
Capacity (l)	100	140	325	400	530	640	900	1100	1500
Closing Force (kn/tn)	12/1,2	26/2,6	41/4,1	41/4,1	53/5,3	61/6,1	70/7	80/8	115/11,5
Nº Cylinders	1	1	1	1	1	1	1	1	1
Max. Pressure Grab (bar)	320	320	320	320	350	350	350	350	350
Max. Pressure Rotor (bar)	120	120	140	140	140	170	170	170	170
Grab Flow (l/min)	35	50	80	80	100	100	120	120	200
Motor Flow (l/min)	20	20	40	40	40	40	40	40	40
Measures A (mm)	1137	1350	1750	1830	2000	2190	2425	2425	3050
Measures B (mm)	500	650	800	850	1000	1100	1200	1400	1500
Measures C (mm)	703	975	1380	1410	1525	1500	1578	1578	1850
Excavator	2-5	5-9	10-15	14-18	16-22	20-30	25-40	35-50	45-60
Motors	1	1	1*	1*	1*	2	2	2	2

*Optional 2 motors

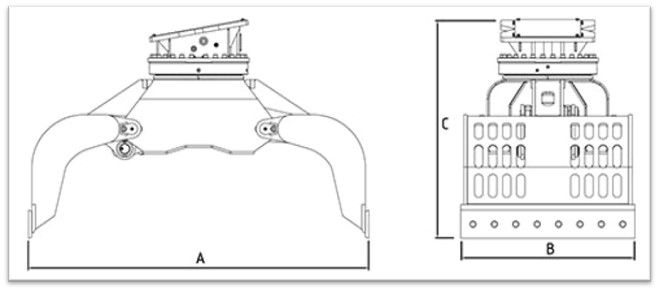

Measures RG Series

*APLICATIONS

A ROTAR grab offers so many application possibilities, from handling and assisting in the classification of material numbers and debris, the loading and transport of materials and the construction of breakwaters, to the demolition of all kinds of works.

rotar-pinzas-manipulacion-aplicaciones-01-manipulacion-seleccion

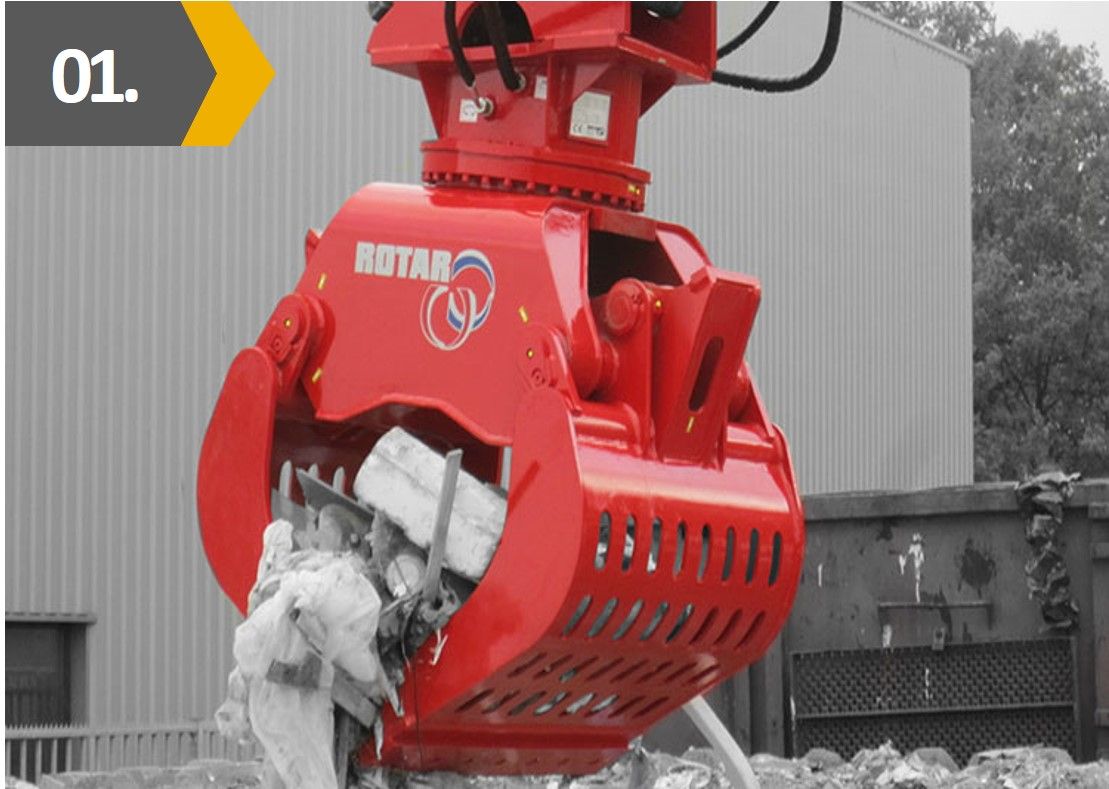

Handling and Selection

rotar-pinzas-manipulacion-aplicaciones-02-escollera-carga

Breakwater and Loading

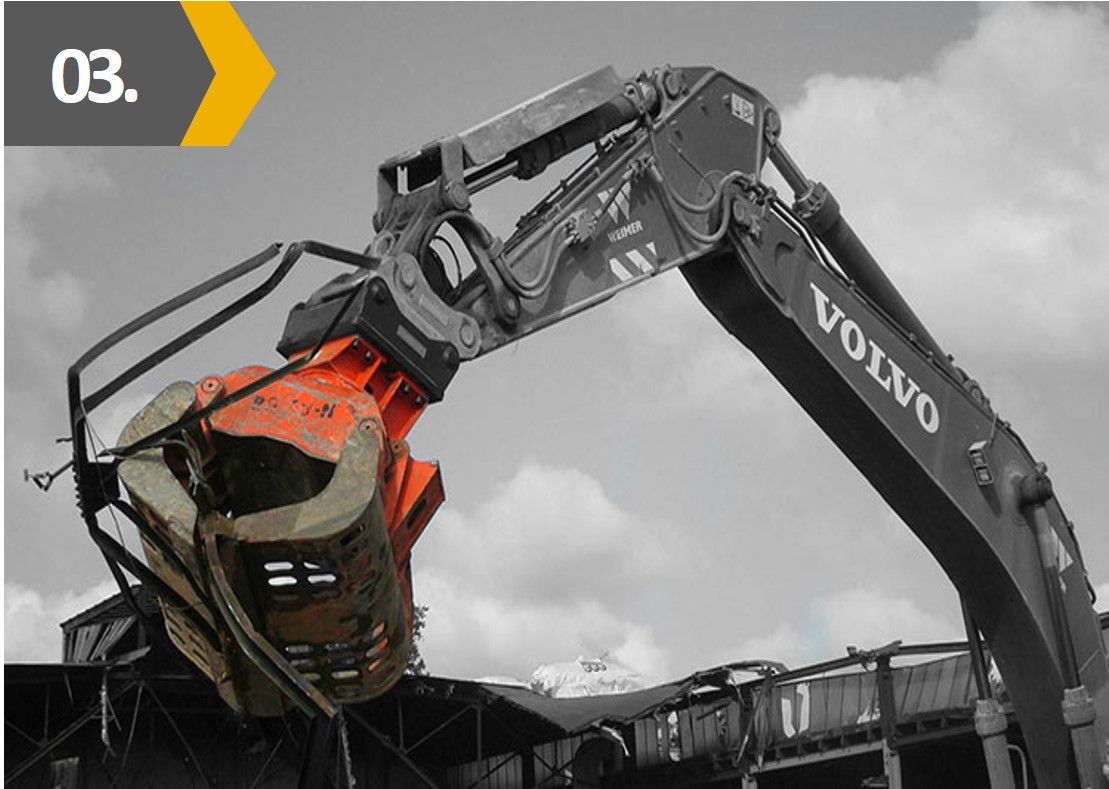

rotar-pinzas-manipulacion-aplicaciones-03-derribos

Demolition

The main features of these ROTAR Handling Grabs are:

Stronger Cylinder
More closing Force
Heavy-duty Double Rowed Slewing Ring
Double Box Chassis
Adjusting Blades with Retainer
Antiwear Blade
Turning Speed Control
Turning Pressure Control

RELIABILITY & ROBUSTNESS

The design and robustness of the equipment mean that their maintenance is minimal.

PROFITABLE & ECONOMIC

High quality equipment at a very affordable price.

360º TURNING

360º turning capacity with speed and pressure control.

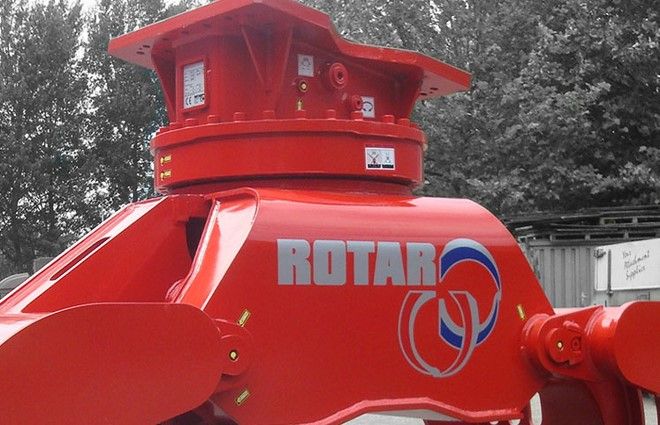

UPPER HEAD & SLEWING RING

rotar-pinzas-manipulacion-aplicaciones-ventajas1

The RG Series is fitted with a strong rotating upper head, and a heavy-duty double rowed slewing ring.
The hydraulic motors in the upper head generate a high torque, suited for heavy loading in any position.

LOAD CONTROL VALVE

rotar-pinzas-manipulacion-aplicaciones-ventajas2

The hydraulic cylinders of the RG Series are all fitted with a load control valve which protects against unexpected opening of the shells.
Additionally, the cylinder has an extra-long stroke, to close the shells even when the edges are worn out.

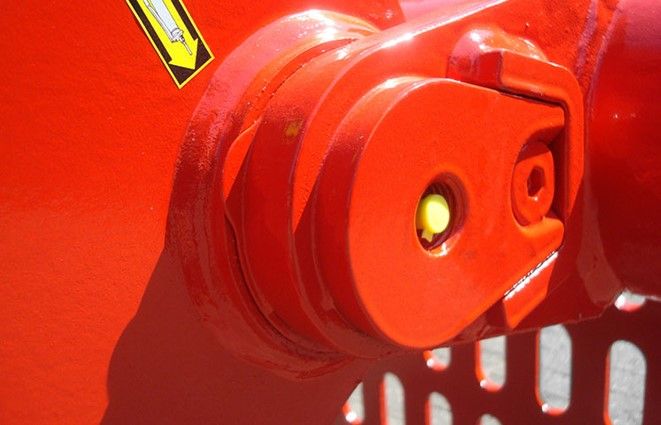

WEAR-RESISTANT SHELLS

rotar-pinzas-manipulacion-aplicaciones-ventajas3

The RG Series’ wear-resistant shells are made of HARDOX steel and equipped with easily replaceable and rotatable cutting edges. The shells are mounted within the long bearing pivot points of the double-walled construction body with hardened, oversized pins. This design lowers the overall tension in the construction, thereby extending the RG’s durability.
