HYDRAULIC CRUSHING GRAPPLES
The range of EDILGRAPPA Hydraulic Crushing Grapples is designed for demolition, renovation, and recycling applications. Thanks to their high crushing force, they can efficiently and accurately process concrete, brickwork, and masonry structures.
- 270-DE T25 Hydraulic Crushing Grapple is designed for mini excavators and demolition work in confined spaces, offering excellent precision and maneuverability.
- 430 T34DE Adjustable Hydraulic Crushing Grapple features an adjustable jaw system that allows it to adapt to different materials and applications, making it ideal for buildings, staircases, columns, and beams.
- 430-2DE T44 Hydraulic Crushing Grapple is designed for structural demolition work, delivering outstanding crushing power for reinforced concrete and masonry structures.
| Characteristics | 270-DE T25 | 430-DE T34 | 430-2DE T44 |
|---|---|---|---|
| Jaw Opening (min.-max.) (mm) | 50/270 | 252/431 | 31/435 |
| Crushing Capacity (mm) | 250 | 400 | 400 |
| Crushing Force (t) | 23 | 34.2 t¹ / 32.3 t² | 44.9 |
| Rebar cutting Capacity (mm) | Ø 16 | Ø 28 | Ø 30 |
| Rebar Cutting Force (kN) | 690 | 920 (93,8 t) | 1400 kN (143 t) |
| Max. Inlet Pressure (bar) | 200 | 200 | 200 |
| Working Pressure (bar) | 200 | 200 | 500 |
| Max. Oil Flow (l/min) | 36 | 100 | 100 |
| Jaw Depth (mm) | 122 | 185 | 195 |
| Rotation Angle (Free Rotation) | 360º | 360º | 360º |
| Jaw Closing / Opening Time | 4,2/1,2 s (Q = 30 l/min) | 2/1 s (Q = 100 l/min) | 2,7/1,6 s (Q = 70 l/min) |
| Weight (kg) | 90 | 189 | 271 |
| Dimensions (Closed) (mm) L x W x H | 752 x 645 x 220 | 973 x 705 x 330 | 1192 x 838 x 332 |
| Dimensions (Open) (mm) L x W x H | 738 x 570 x 220 | 1004 x 728 x 330 | 1127 x 838 x 332 |
| Recommended Excavator Weight (kg) | 1500/3000 | 1500/3000 | 3000/5000 |
The main features of these Hydraulic Crushing Grapples are:

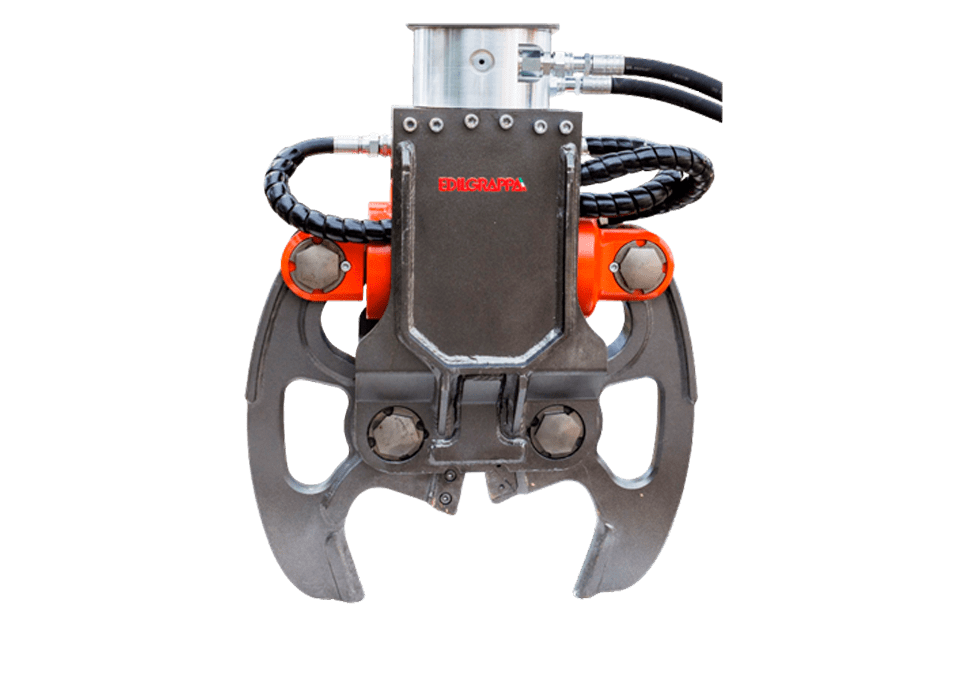

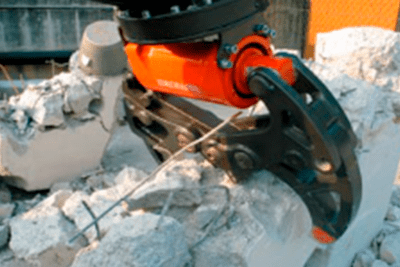

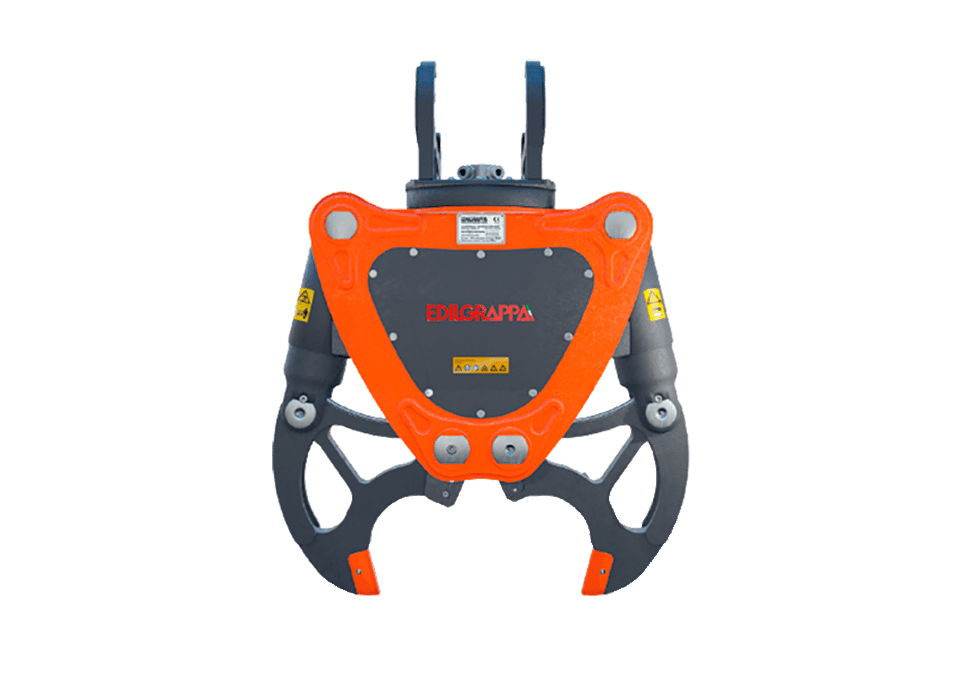

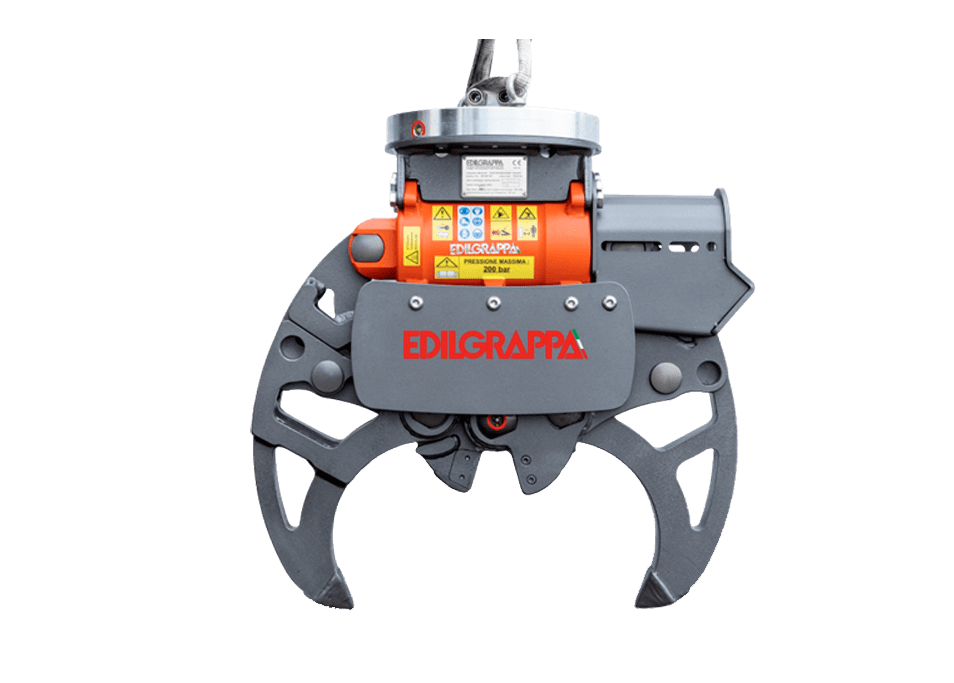

EDILGRAPPA Hydraulic Crushing Grapples Gallery.
